Pasquali 977

Last Updated: June 2024

Overview

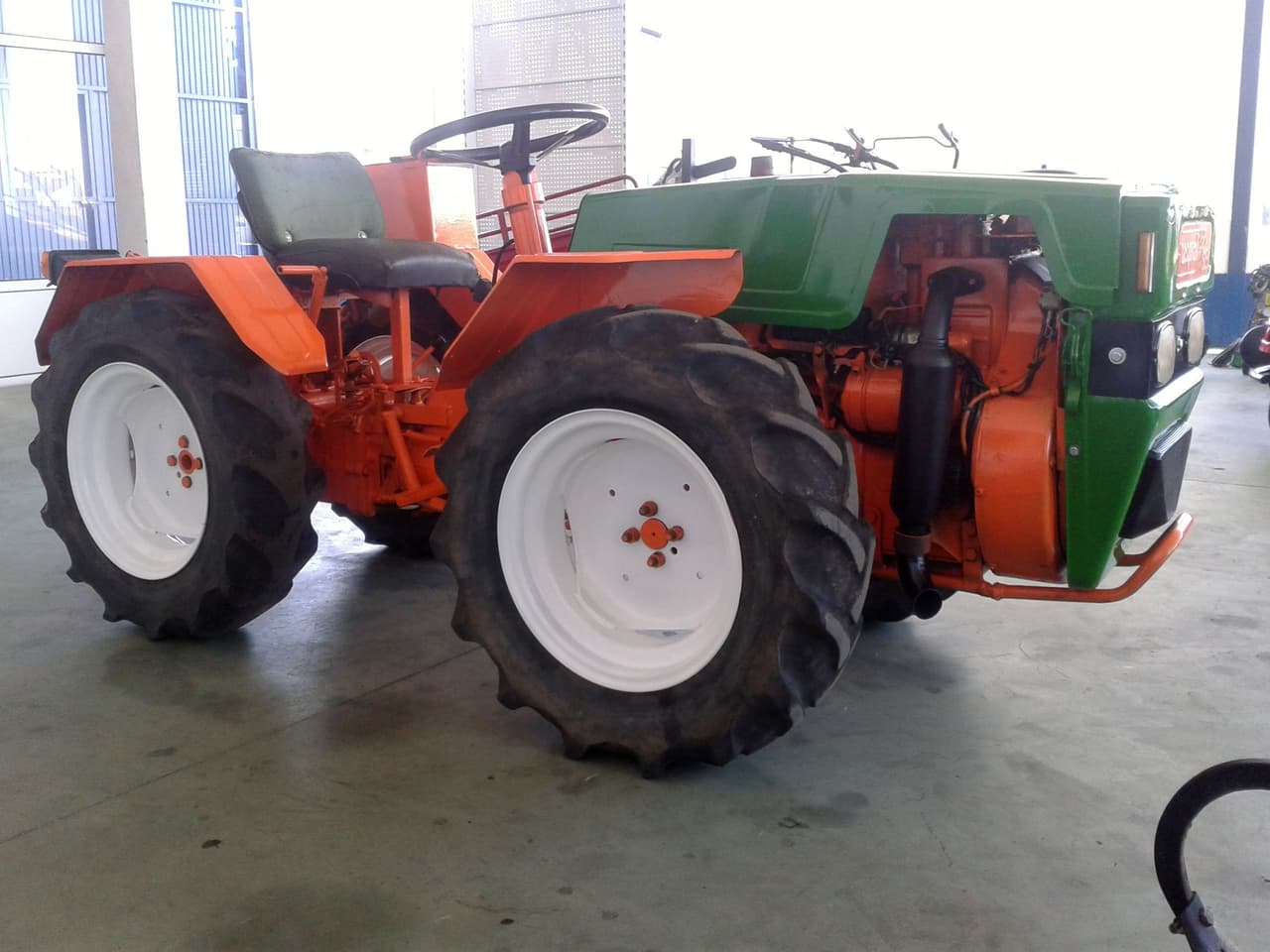

The Pasquali 977 is a traditional farm/agricultural tractor, known for its rugged durability and versatility. With a 35 hp (26.1 kW) Ruggerini diesel engine, it is capable of handling various farming tasks. It features an articulated chassis design, ensuring a tight turning radius and enhanced maneuverability in smaller spaces. The air-cooled, 2-cylinder 68.6 ci engine coupled with a manual steering system (power steering optional) and a 9-forward and 3-reverse speed transmission provides a reliable drive for a variety of applications. Standing with a wheelbase of 46.5 inches and an operating weight of 1,786 lbs, the tractor is compact and efficient for its category. Its ground clearance of 12 inches allows it to perform well in uneven terrain, and the 16-inch agricultural tires front and back complement its all-terrain abilities. The Pasquali 977 is an exemplar of straightforward, mechanical technology in the agricultural sector.
Show more...

Key Specifications

Category: Agricultural

Power Output: 35

Drive Type: 4WD

Operating Weight: 1786

Fuel Type: Diesel

Pasquali 977 vs. Similar Tractors

Power Output
Below Average
Greater than 11% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ruggerini
Model
-
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
68.6
Bore (in)
3.64
Stroke (in)
3.68
Rated RPM
3000
Power Output (hp)
35

Transmission

Type
-
Forward Gears
9
Reverse Gears
3
Total Gears
12

Dimensions

Length (in)
96.5
Width (in)
-
Height (in)
43.5 (to steering wheel, overall height Unknown)
Operating Weight (lb)
1786

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated
Drive Type
4WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
16
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
