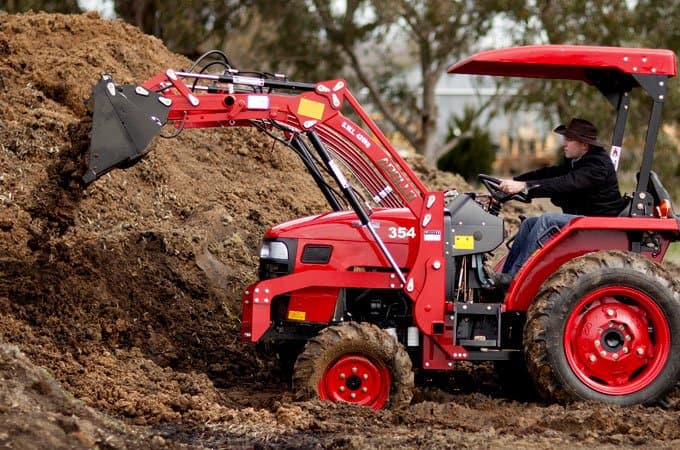

Apollo 354

Last Updated: June 2024

Key Specifications

Category: Utility

Power Output: 35

Transmission: Shuttle

Drive Type: Four Wheel Drive (4WD)

Fuel Type: Diesel

Apollo 354 vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Changfa
Model
CF3B28T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
3
Displacement (ci)
93.5
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
35

Transmission

Type
Shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
157.5
Width (in)
56.7
Height (in)
90.6
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
Four Wheel Drive (4WD)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag), Industrial as optional
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric, 12 volts
Brake Type
-
Hydraulic System Type
-
