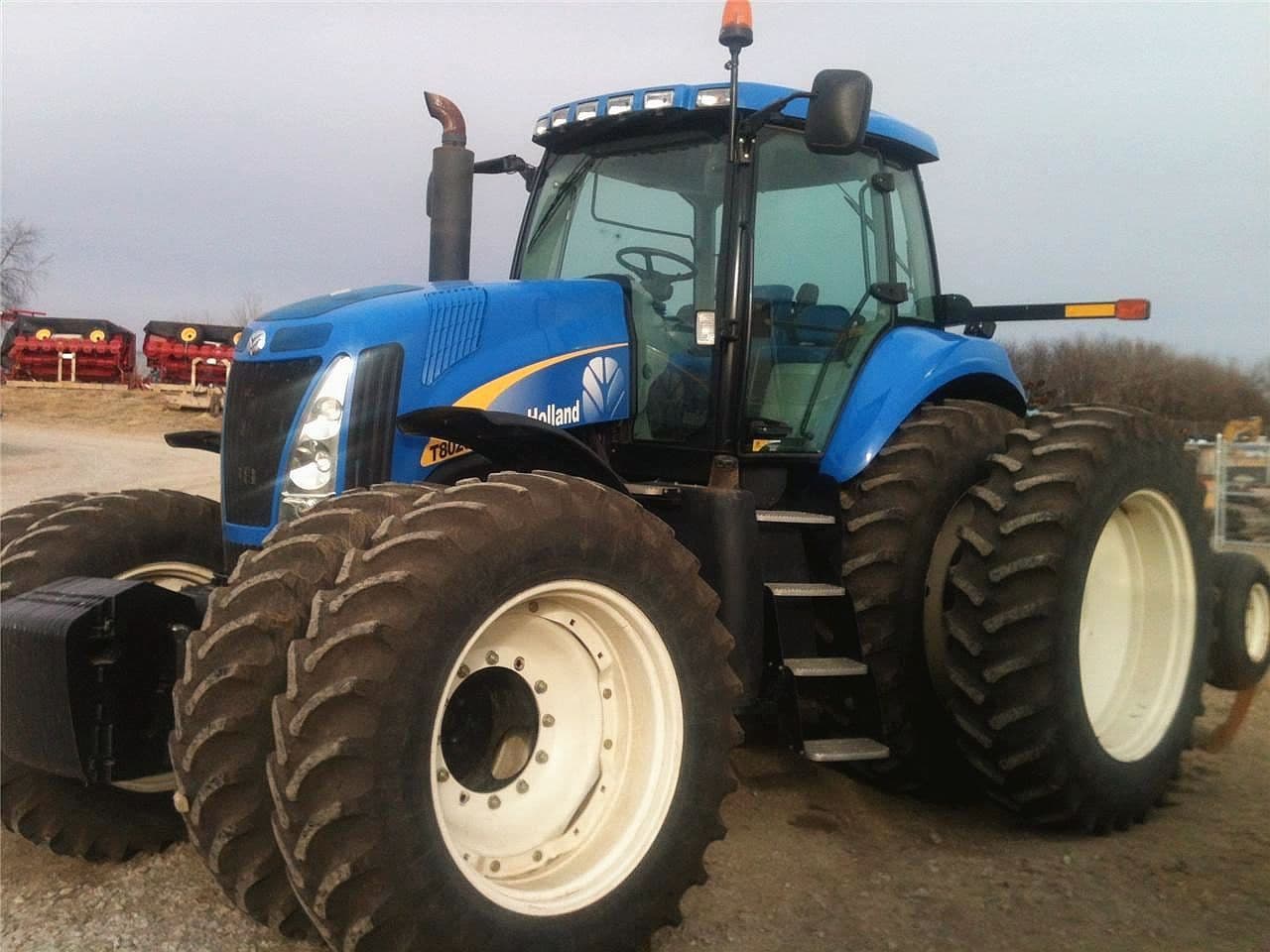

New Holland T8020

Last Updated: June 2024

Overview

The New Holland T8020 is a row-crop tractor known for its robust design and flexibility in various agricultural tasks. This model features a 4x4 MFWD 4WD chassis that enhances traction and performance in challenging environments. Its power steering contributes to easy maneuverability during extended hours of operation. The T8020 is equipped with an efficient full power shift transmission that offers 23 forward and 6 reverse gears, complemented by an electro-hydraulic wet disc clutch. The tractor is powered by a New Holland 6-cylinder, intercooled turbocharged diesel engine with a displacement of 506.5 cubic inches. Rated at 244.1 horsepower and peaking at 277.6 horsepower under 2000/25/CE conditions, the engine has substantial strength for heavy-duty tasks, operating at a rated RPM of 2200 and producing high torque levels. The overall dimensions of the T8020 convey its substantial size and build, while also maintaining reasonable accessibility for varying farm operations. The tractor supports a Category 3 hitch system; however, the lift capacity remains unspecified.
Show more...

Key Specifications

Category: Row Crop

Power Output: 244.1

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 21270

Fuel Type: Diesel

New Holland T8020 vs. Similar Tractors

Power Output
Above Average
Greater than 81% of similar tractors.
Operating Weight
Above Average
Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer
New Holland
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbocharged
Cylinders
6
Displacement (ci)
506.5
Bore (in)
4.488
Stroke (in)
5.315
Rated RPM
2200
Power Output (hp)
244.1

Transmission

Type
Full power shift
Forward Gears
23
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
229.5
Width (in)
98
Height (in)
131.1
Operating Weight (lb)
21270

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III/IIIN
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing
