Massey Ferguson 4235

Last Updated: June 2024

Overview

The Massey Ferguson 4235 is a utility tractor that was produced from 1997 to 2001. It is powered by a Perkins diesel engine, which is available in two variants with slight variations in displacement—either 258 ci or 250 ci. The engine is liquid-cooled and reaches a rated RPM of 2200, producing around 75 horsepower. The tractor is equipped with a 4x2 2WD chassis and power steering for ease of maneuverability. This tractor also comes with a power shuttle transmission offering 12 forward and reverse gears. With an operating weight of up to 8185 pounds, the Massey Ferguson 4235 accommodates ag tires and has a hydraulic system with an open-center type. The significant discrepancies in data such as engine displacement and bore, along with several unknown details, indicate variability and underscore the importance of checking the specific tractor unit for exact specifications.
Show more...

Key Specifications

Category: Utility

Power Output: 75

Transmission: Power shuttle

Drive Type: 2WD

Operating Weight: 8185, 7661 (Assuming 8185 lbs as the maximum observed)

Fuel Type: Diesel

Image Gallery

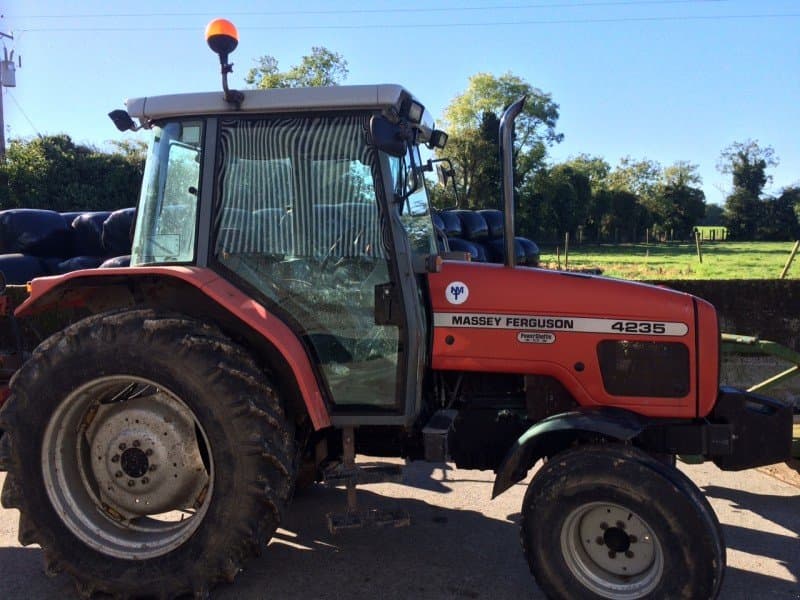

Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor Massey Ferguson 4235 Tractor

Massey Ferguson 4235 vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Operating Weight
Average
Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1004.42, 4.41 (Assumed from "Engine Detail")
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
258, 250 (Discrepancy noted, a single value cannot be confidently assumed)
Bore (in)
4.05, 3.98 (Discrepancy noted, assuming the larger value due to a lack of further data)
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
75

Transmission

Type
Power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
159 (2WD)
Width (in)
77 (Min for 2WD)
Height (in)
-
Operating Weight (lb)
8185, 7661 (Assuming 8185 lbs as the maximum observed)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
18.5, 18.4 (Assuming 18.5 qts given two sources)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2001
Hitch Type
Three-Point Hitch
Hitch Category
II/I (Assuming II based on more occurrences)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center

Test Results

Nebraska Tractor Test Laboratory - Test Date: May to September, 1998

Maximum Power and Fuel Consumption

  • Maximum Power at PTO Speed (540 RPM Shaft):
  • Rated Engine Speed: 62.1 HP (46.3 kW) at 2200 rpm
  • Fuel Consumption: 4.34 Gal/hr (16.44 l/h) with a fuel efficiency of 0.489 lb/hp.hr (0.297 kg/kW.h)
  • Power at Standard PTO Speed: 65.2 HP (48.6 kW) at 1903 rpm
  • Maximum Power at PTO Speed (1000 RPM Shaft):
  • Rated Engine Speed: 63.2 HP (47.1 kW) at 2196 rpm
  • Fuel Consumption: 4.35 Gal/hr (16.45 l/h) with a fuel efficiency of 0.481 lb/hp.hr (0.292 kg/kW.h)
  • Power at Standard PTO Speed: 66.6 HP (49.7 kW) at 2001 rpm

Drawbar Performance

  • Maximum Power (Unballasted—Front Drive Engaged):
  • 7th (1ML) Gear:
    • Power: 51.6 HP (38.5 kW)
    • Drawbar Pull: 5212 lbs (23.2 kN)
    • Speed: 3.71 mph (5.98 km/h)
    • Fuel Consumption: 0.585 lb/hp.hr (0.356 kg/kW.h) with a fuel efficiency of 11.93 Hp.hr/gal (2.35 kW.h/l)
  • 75% of Pull at Maximum Power—8th (1MH) Gear:
    • Power: 40.5 HP (30.2 kW)
    • Drawbar Pull: 3920 lbs (17.4 kN)
    • Speed: 3.87 mph (6.23 km/h)
    • Fuel Consumption: 0.560 lb/hp.hr (0.341 kg/kW.h) with a fuel efficiency of 12.48 Hp.hr/gal (2.46 kW.h/l)

Torque and Engine Performance

  • Maximum Torque:
  • 207.2 lb.-ft. (280.9 Nm) at 1401 rpm
  • Torque Rise:
  • 39.9% with a power increase at 2000 rpm

Hydraulic Performance

  • Maximum Force Exerted Through Whole Range:
  • 5260 lbs (23.4 kN) at hitch points
  • Pump Delivery Rate at Minimum Pressure:
  • 10.6 GPM (40.0 l/min)
  • Hydraulic Power:
  • 14.9 HP (11.1 kW) at delivery pressure of 2685 psi (185 bar)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (540 RPM):
  • 16.14 Hp.hr/gal (3.18 kW.h/l)
  • Fuel Efficiency at Standard PTO Speed (1000 RPM):
  • 15.99 Hp.hr/gal (3.15 kW.h/l)



Nebraska Tractor Test Lab.(1998).Nebraska Summary 277: Massey-Ferguson 4235 Diesel 18-Speed. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2227
