AGCO LT75

Last Updated: July 2024

Overview

The AGCO LT75 is a utility tractor equipped with a turbocharged four-cylinder Cummins diesel engine. The engine provides 78.98 horsepower at 2000 rpm, with a displacement of 274 cubic inches and a maximum torque of 240 lb-ft at 1650 RPM. It has a torque rise of 30.3%. The liquid-cooling system maintains optimal operating temperatures. A robust selective gear fixed ratio transmission with partial (2) range operator controlled powershift offers 16 forward and 16 reverse gears. With a wheelbase of 100.5 inches and a total length of 165.5 inches, the AGCO LT75 has an unladen weight of 9600 pounds. Steering is made easier with hydrostatic power steering. The tractor's utility is further enhanced by its Category II three-point hitch with a lift capacity ranging from 7817 to 9189 lbs.

Key Specifications

Category: Utility

Power Output: 78.98

Transmission: Selective gear fixed ratio with partial (2) range operator controlled powershift

Drive Type: 4WD

Operating Weight: 9600

Fuel Type: Diesel

Image Gallery

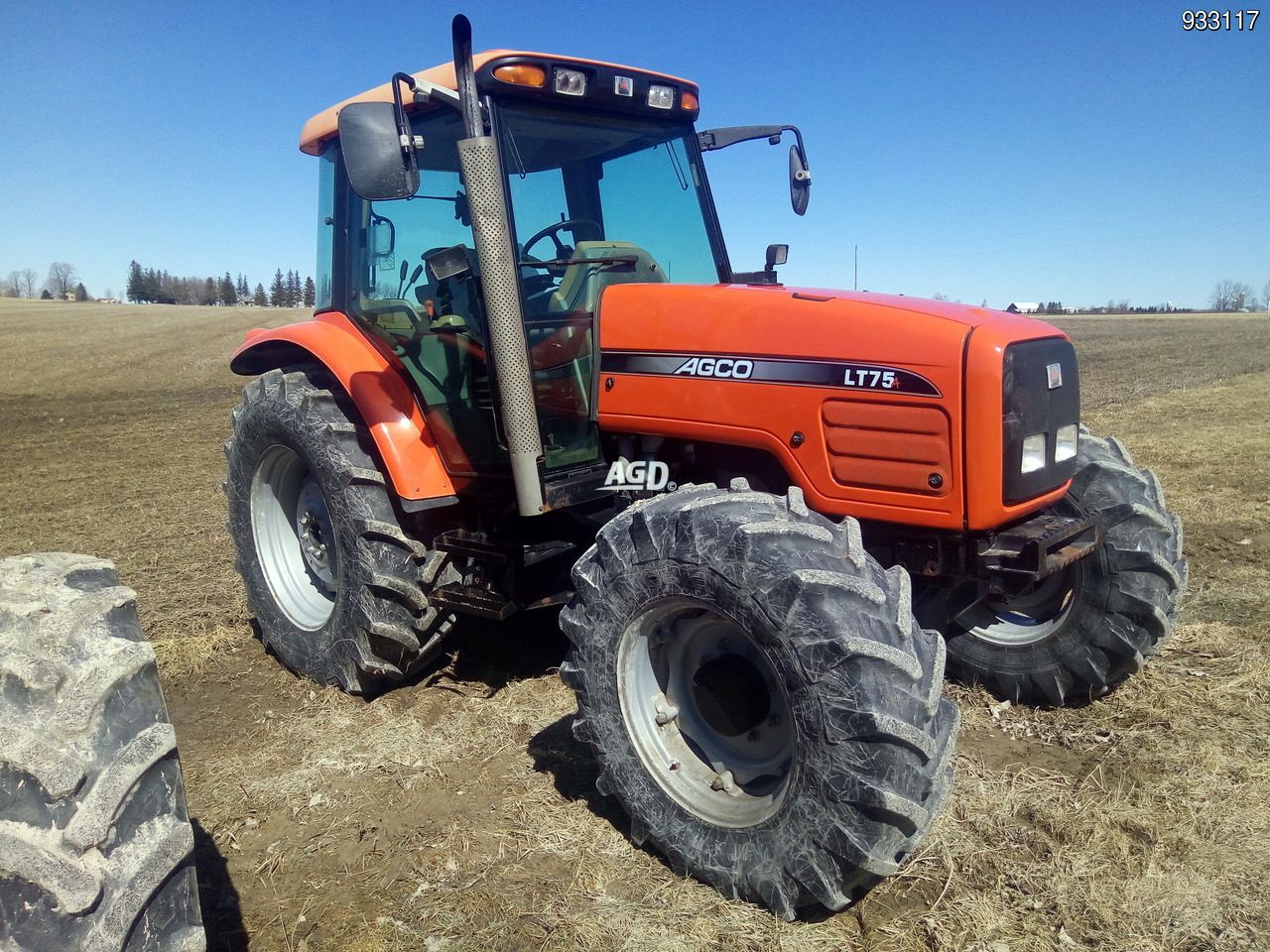

AGCO LT75 Tractor

Technical Specifications

Engine

Manufacturer: Cummins
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Vertical
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 274
Bore (in): 4.094
Stroke (in): 5.197
Rated RPM: 2201
Power Output (hp): 78.98

Transmission

Type: Selective gear fixed ratio with partial (2) range operator controlled powershift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 165.5
Width (in): -
Height (in): 110
Operating Weight (lb): 9600

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540 rpm at 1902 engine rpm
PTO Speed 2 (rpm): 1000 rpm at 2000 engine rpm
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: Front wheel assist (4WD)
Drive Type: 4WD
Steering Type: Hydrostatic power steering
Coolant Capacity (qts): -
Front Tire Diameter (in): 14.9R24
Front Tire Width (in): -
Rear Tire Diameter (in): 18.4R34
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category II three-point hitch
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): 7817-9189
Operator Station Type: Cab
Starter Type: 12-volt electric
Brake Type: -
Hydraulic System Type: Open center
