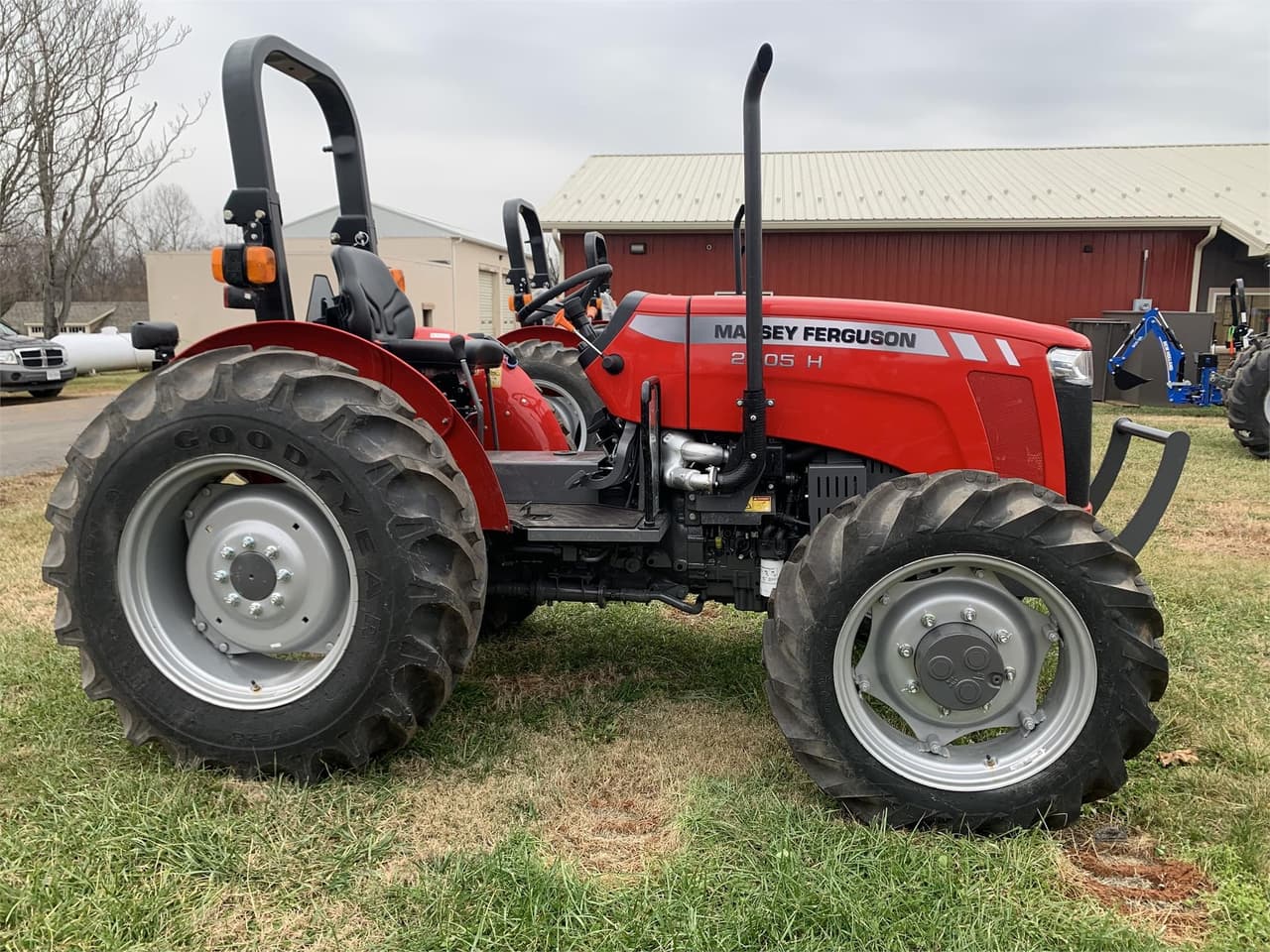

Massey Ferguson 2605H

Last Updated: September 2024

Overview

The Massey Ferguson 2605H is a utility tractor built for farmers who need a reliable workhorse. This 2WD tractor has a powerful 55 hp engine made by Simpson. It's a diesel engine with three cylinders and uses turbocharging to boost its power. The engine size is average compared to other tractors, making it suitable for many farm tasks.

This tractor has a gear transmission with 8 forward and 2 reverse speeds. It uses power steering, making it easy to control. The 2605H can lift heavy loads with its strong hitch, which can handle up to 2,205 pounds. This lifting power is above average for tractors in its class. The tractor has a PTO (Power Take-Off) that runs at 540 rpm, perfect for running various farm tools. It also has features like differential lock and drum brakes for safety. The 2605H meets Tier IV emissions standards, showing it's designed to be eco-friendly.
Show more...

Key Specifications

Category: Utility

Power Output: 55 hp (41.0 kW)

Transmission: Gear, Sync Shuttle

Drive Type: 2WD

Operating Weight: 4894 lb (2220 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Simpson
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
3
Displacement
158 ci (2.6 L)
Bore
3.66 in (93.0 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2000
Power Output
55 hp (41.0 kW)

Transmission

Type
Gear, Sync Shuttle
Forward Gears
8
Reverse Gears
2

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Brake Type
Drum
