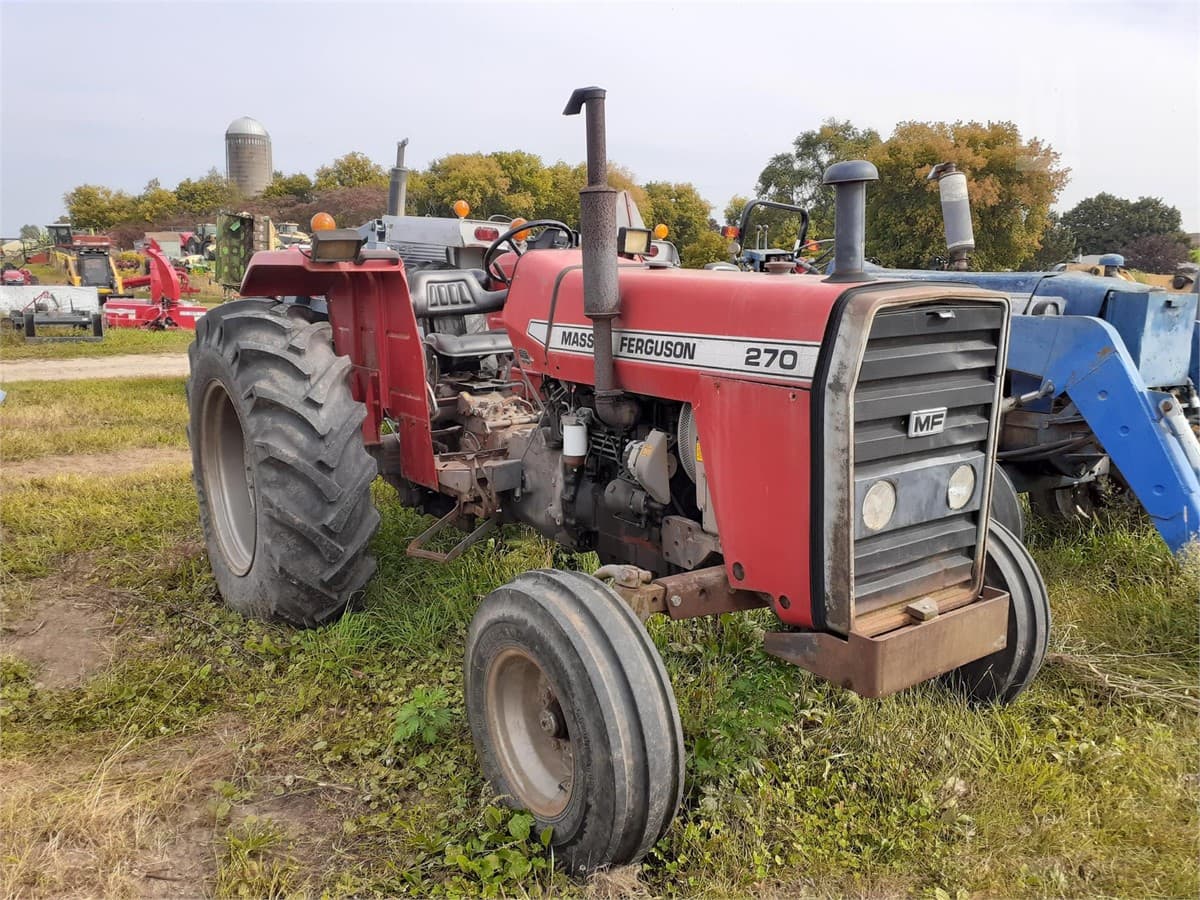

Massey Ferguson 270

Last Updated: June 2024

Overview

The Massey Ferguson 270 is a utility tractor that was produced from 1983 to 1986. It features a two-wheel drive (2WD) chassis and is powered by a 236 cubic inch, 4-cylinder Perkins A4.236 diesel engine, delivering 55 horsepower. Equipped with a Multi-Power partial power shift transmission, it has 12 forward gears and 4 in reverse. The tractor is designed for various agricultural tasks with its open operator station, though a cabin was optional for the operator's comfort. The 270 also has a rear-mounted three-point hitch of category II, is capable of using a PTO with a standard 540 rpm speed, and utilizes hydrostatic power-assisted steering for easy maneuverability combined with hydraulic wet disc brakes for efficient stopping power.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Transmission: Multi-Power

Drive Type: 2WD

Operating Weight: 6900

Fuel Type: Diesel

Image Gallery

Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor Massey Ferguson 270 Tractor

Massey Ferguson 270 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Average
Greater than 52% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.236
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
4
Displacement (ci)
236
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2000
Power Output (hp)
55

Transmission

Type
Multi-Power
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
147
Width (in)
85
Height (in)
-
Operating Weight (lb)
6900

Power Take-Off (PTO)

PTO Type
Rear, live type or independent option
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
15
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1986
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open/ROPS optional
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
