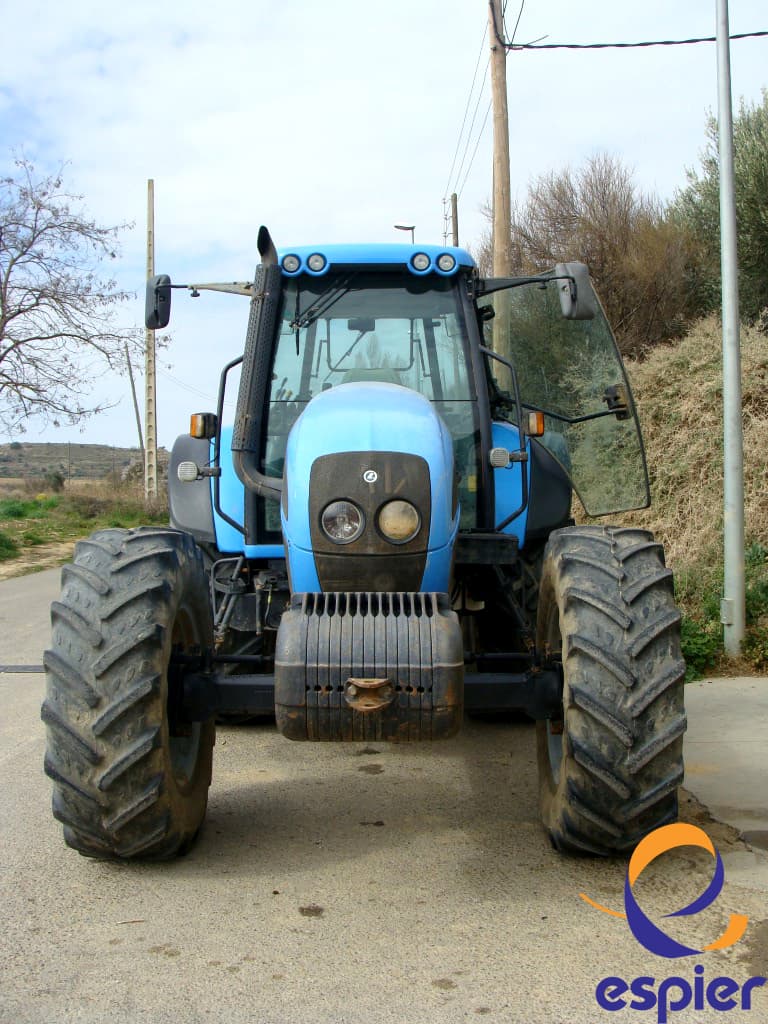

Landini Legend 180

Last Updated: June 2024

Overview

The Landini Legend 180 is a robust agricultural tractor designed for versatile use in various farming applications. The tractor features a 4x4 MFWD 4WD chassis, offering enhanced traction and performance in challenging field conditions. Power comes from a Perkins 1006-60TA six-cylinder, intercooled turbo engine, providing 176 horsepower with a displacement of 366.1 cubic inches. Engine torque peaks at 518.5 lb-ft at 1300 RPM. With a hydrostatic power steering system, operators can expect responsive and comfortable handling. The transmission is complex, boasting 102 forward and 36 reverse gears, giving the user a wide range of speed options to tackle different tasks efficiently. The tractor's wheelbase measures 110.2 inches, supporting stability and balance, while the operating weight is 13,781 pounds, ensuring strength and durability for heavy-duty work. Dimensionally, the Landini Legend 180 has a length of 214.2 inches and a height of 113.4 inches. Tires sizes are specified for the front and rear, contributing to the tractor's ground clearance and ride quality. The Landini Legend 180 is well-suited for those requiring a powerful, multi-purpose tractor capable of handling a variety of tasks on a modern farm.
Show more...

Key Specifications

Power Output: 176

Drive Type: 4WD

Operating Weight: 13781

Technical Specifications

Engine

Manufacturer
Perkins
Model
1006-60TA
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Intercooled turbo
Cylinders
6
Displacement (ci)
366.1
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
176

Transmission

Type
-
Forward Gears
102
Reverse Gears
36
Total Gears
-

Dimensions

Length (in)
214.2
Width (in)
-
Height (in)
113.4
Operating Weight (lb)
13781

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
