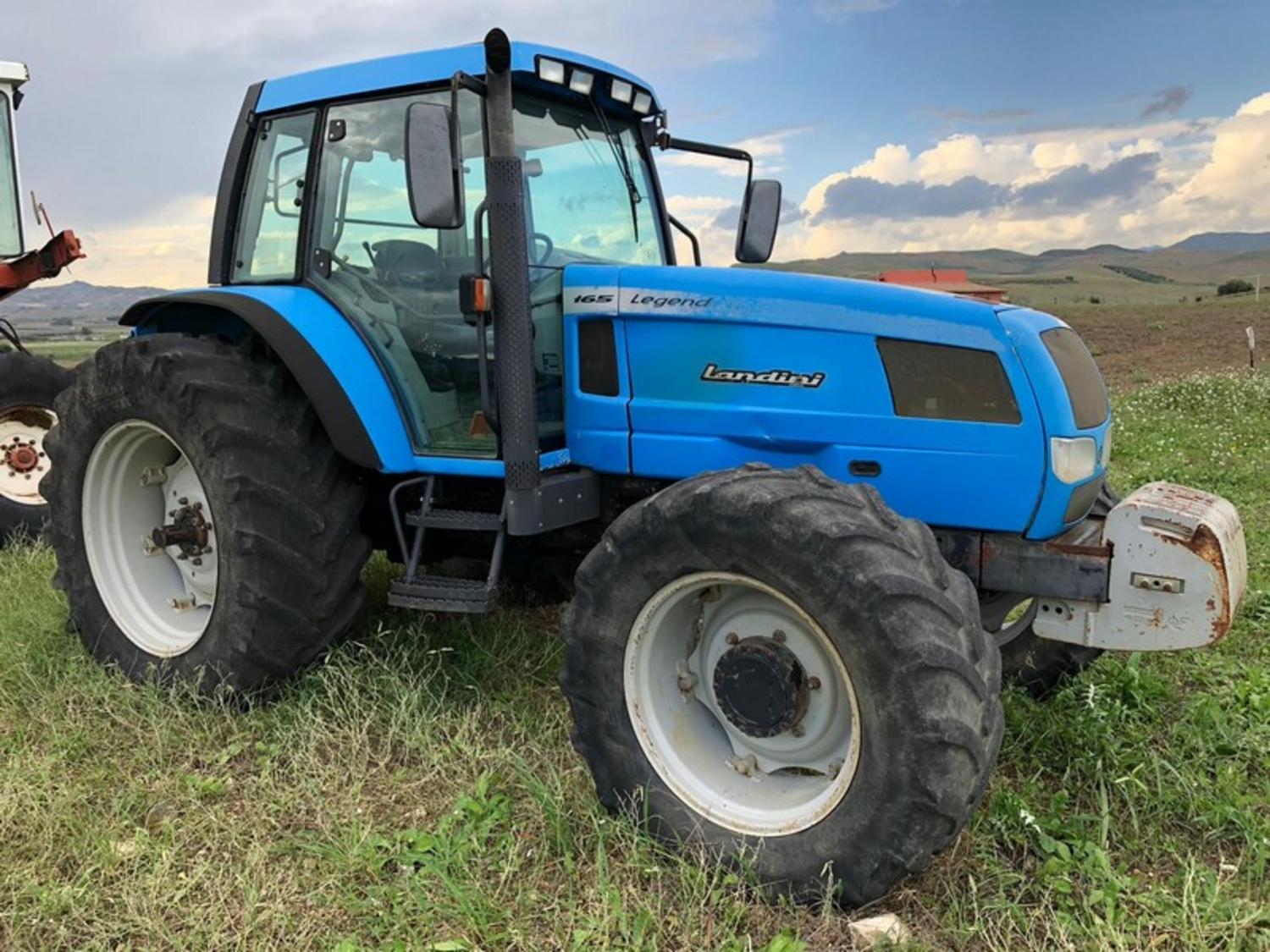

Landini Legend 165 TDI

Last Updated: June 2024

Overview

The Landini Legend 165 TDI is a distinguished row-crop tractor noteworthy for its robustness and versatility. It comes equipped with a 4x4 MFWD 4WD chassis ensuring adequate power delivery on varied terrains. Powering the Legend 165 TDI is a formidable 365 cubic-inch turbocharged Perkins diesel engine that delivers a solid 161 horsepower and operates at a rated RPM of 2200. The liquid-cooled engine promises efficient thermal management for sustained agricultural or farm tasks. Transmission offerings seem rich, with the highest configuration boasting 108 forward and 36 reverse gears, suitable for a variety of operations. Its substantial operating weight of 13,750 pounds along with a substantial ground clearance of 21.5 inches, further accentuates its capability in rigorous fieldwork. The generous dimensions of the tractor, with a length of 214.5 inches, width of 94 inches, and height of 110.5 inches, makes it a commanding presence. Overall, the Landini Legend 165 TDI represents a blend of power and functionality that is designed to meet diverse farming needs.
Show more...

Key Specifications

Category: Row Crop

Power Output: 161

Drive Type: 4WD

Operating Weight: 13750

Fuel Type: Diesel

Landini Legend 165 TDI vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1106-E60TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
365
Bore (in)
3.94
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
161

Transmission

Type
-
Forward Gears
108
Reverse Gears
36
Total Gears
-

Dimensions

Length (in)
214.5
Width (in)
94
Height (in)
110.5
Operating Weight (lb)
13750

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
