Landini 14500

Last Updated: June 2024

Overview

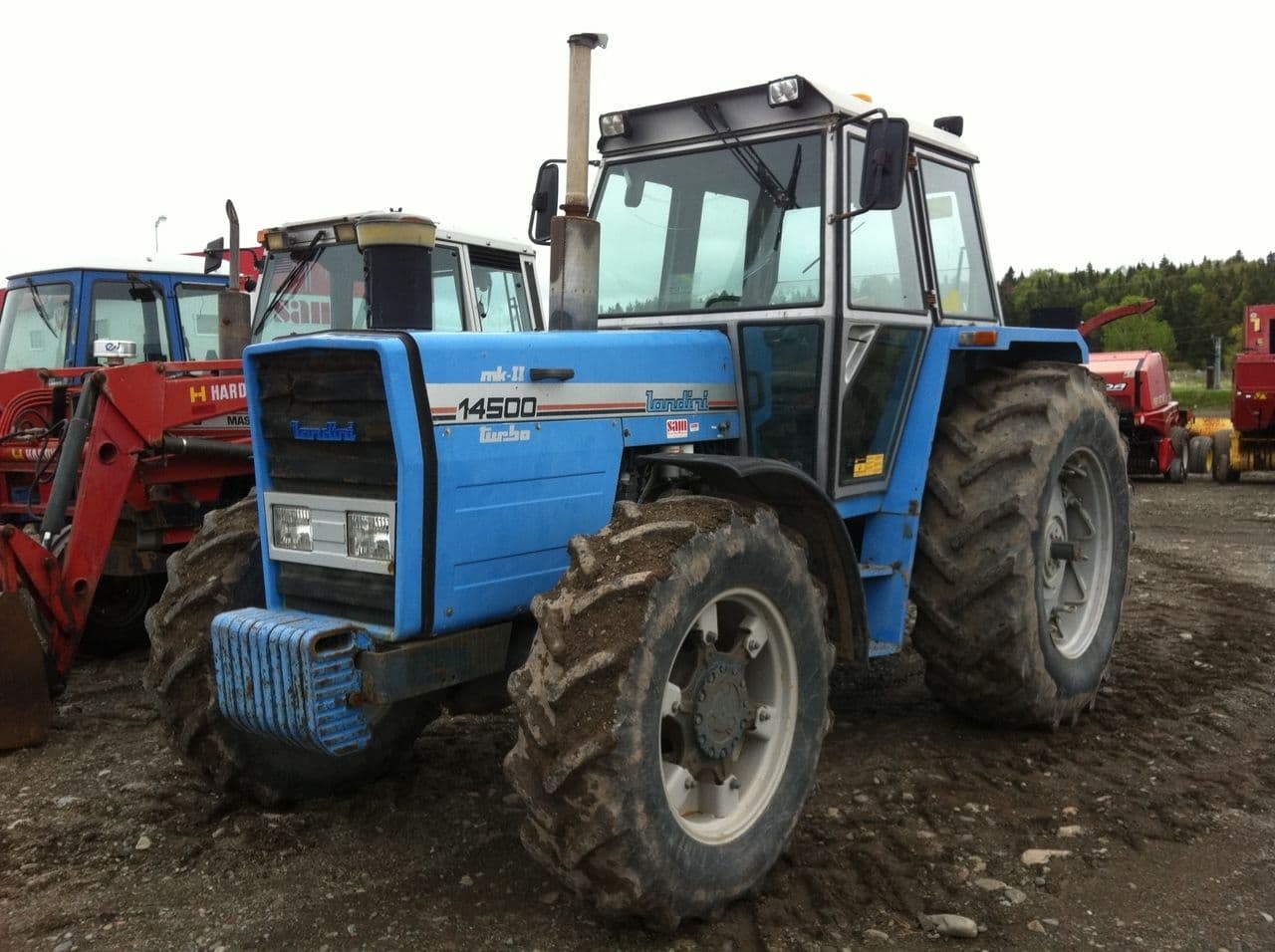

The Landini 14500 is a row-crop tractor that was designed with a focus on performance and adaptability. Equipped with a turbocharged diesel engine by Perkins, model AT6.354.4, it offers a 6-cylinder, liquid-cooled design and a displacement of 353.9 cubic inches. With engine power output figures of around 132 to 135 horsepower (discrepancies noted), the tractor is robust for various tasks. The Landini 14500 features a manual 12-speed transmission with a 4-reverse gear system, allowing for a wide range of speeds suitable for different agricultural tasks. This tractor is available in both 2WD and 4WD versions, with respective wheelbase lengths and ground clearance levels, highlighting its flexibility to suit different farm operations. With spherical power or hydrostatic steering options, the tractor ensures maneuverability and ease of control. Standard agricultural tires facilitate operation in varied terrain. Exact dimensions and weights differ slightly between sources, indicating possible variations between specific models or configurations. Additional details on the hydraulic system indicate an open center type, providing reliable and consistent power for the tractor's hydraulically powered accessories.
Show more...

Key Specifications

Category: Row Crop

Power Output: 132, 135 (Discrepancy noted)

Transmission: Manual

Drive Type: 2WD, 4WD

Operating Weight: 11,995, 11,177 to 12,500 (Range provided might include different models/options)

Fuel Type: Diesel

Landini 14500 vs. Similar Tractors

Power Output
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
AT6.354.4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
353.9
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
132, 135 (Discrepancy noted)

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
174.0, 183.5 (Discrepancy noted due to different sources, might depend on 2WD or 4WD model)
Width (in)
95.3 *
Height (in)
109.4, 114.2 (Discrepancy noted due to different sources, might depend on 2WD or 4WD model with cab)
Operating Weight (lb)
11,995, 11,177 to 12,500 (Range provided might include different models/options)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD, 4x4 MFWD 4WD
Drive Type
2WD, 4WD
Steering Type
Power, Hydrostatic power
Coolant Capacity (qts)
27.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculture
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Possibly Cab based on height description, but not explicit)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
