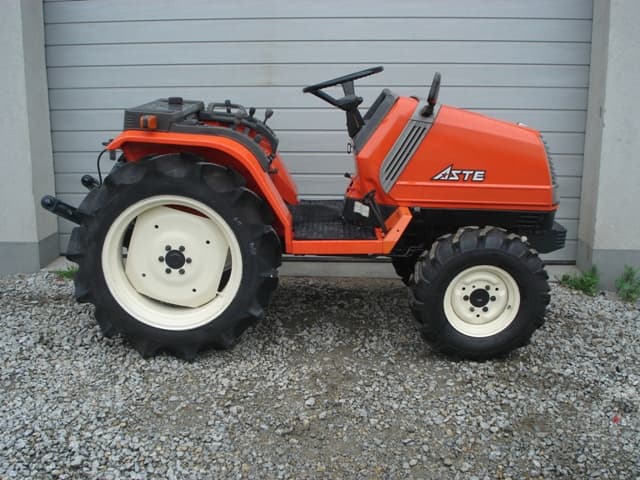

Kubota A-19

Last Updated: September 2024

Overview

The Kubota A-19 is a small but mighty utility tractor that was made from 1988 to 1992. It's perfect for farmers who need a compact machine for light work. This tractor has four-wheel drive, which means it can handle tough terrain and wet conditions.

Under the hood, the A-19 has a Kubota D1105 engine. It's a diesel engine with three cylinders that can produce 18.3 horsepower. The engine is liquid-cooled, which helps it run smoothly. The tractor has a manual transmission with 6 forward gears and 2 reverse gears, giving the driver good control. It also has a rear PTO that spins at 540 rpm, useful for running attachments.

This tractor is small, measuring just 99.6 inches long, 40.9 inches wide, and 50 inches tall. It weighs 1,477 pounds, which is light compared to many other tractors. The A-19 has an open operator station with a roll-over protection system for safety. It's equipped with agricultural tires and a Category 0 hitch at the back for attaching tools. Overall, the Kubota A-19 is a compact and versatile tractor suitable for small farms and light utility work.
Show more...

Key Specifications

Category: Utility

Power Output: 18 hp (13.6 kW)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1477 lb (670 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1105
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement
68 ci (1.1 L)
Bore
3.07 in (78.0 mm)
Stroke
3.09 in (78.5 mm)
Rated RPM
2600
Power Output
18 hp (13.6 kW)

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
2

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
