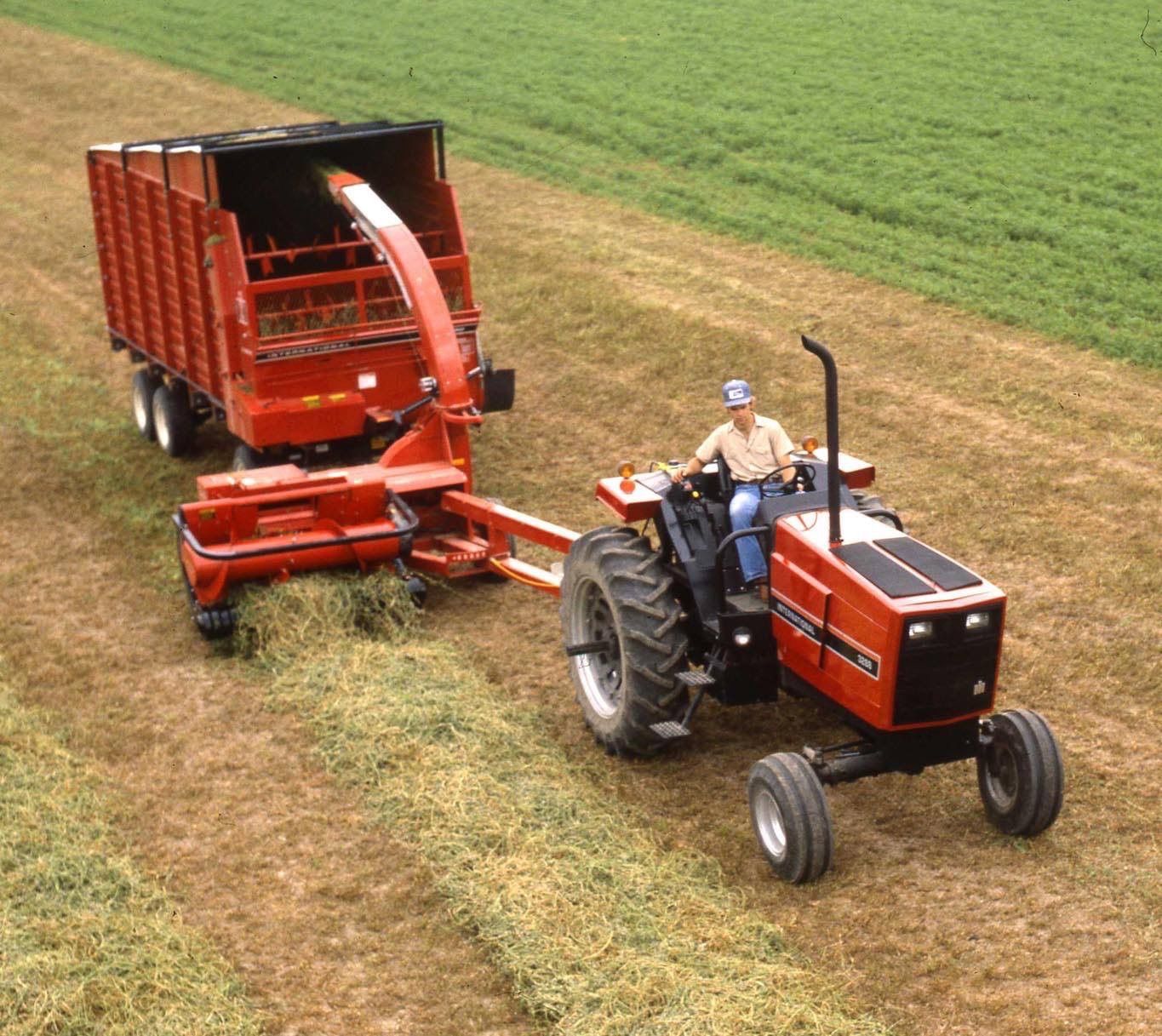

International Harvester 3088

Last Updated: June 2024

Overview

The International Harvester 3088 is a row-crop tractor that offers a robust and practical solution for a variety of agricultural tasks. It features a 4x2 2WD chassis configuration and is powered by a 6-cylinder International Harvester D358 diesel engine with a displacement of 358 cubic inches. The tractor's power is channeled through a partial power shift transmission that provides 16 forward and 8 reverse gears, allowing for versatility in field operations. It has a power steering system and a liquid cooling system for the engine with a coolant capacity of 24 quarts. The tractor has operating and shipping weights of 11940 and 10600 pounds, respectively, and provides solid stability with a wheelbase of 105 inches and a ground clearance of 13 inches.
Show more...

Key Specifications

Category: Row Crop

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 11940

Fuel Type: Diesel

International Harvester 3088 vs. Similar Tractors

Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D358
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
358
Bore (in)
3.875
Stroke (in)
5.0625
Rated RPM
2400
Power Output (hp)
-

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
184
Width (in)
102
Height (in)
112 (cab height only)
Operating Weight (lb)
11940

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
24
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (based on engine starter volts)
Brake Type
-
Hydraulic System Type
Open center
