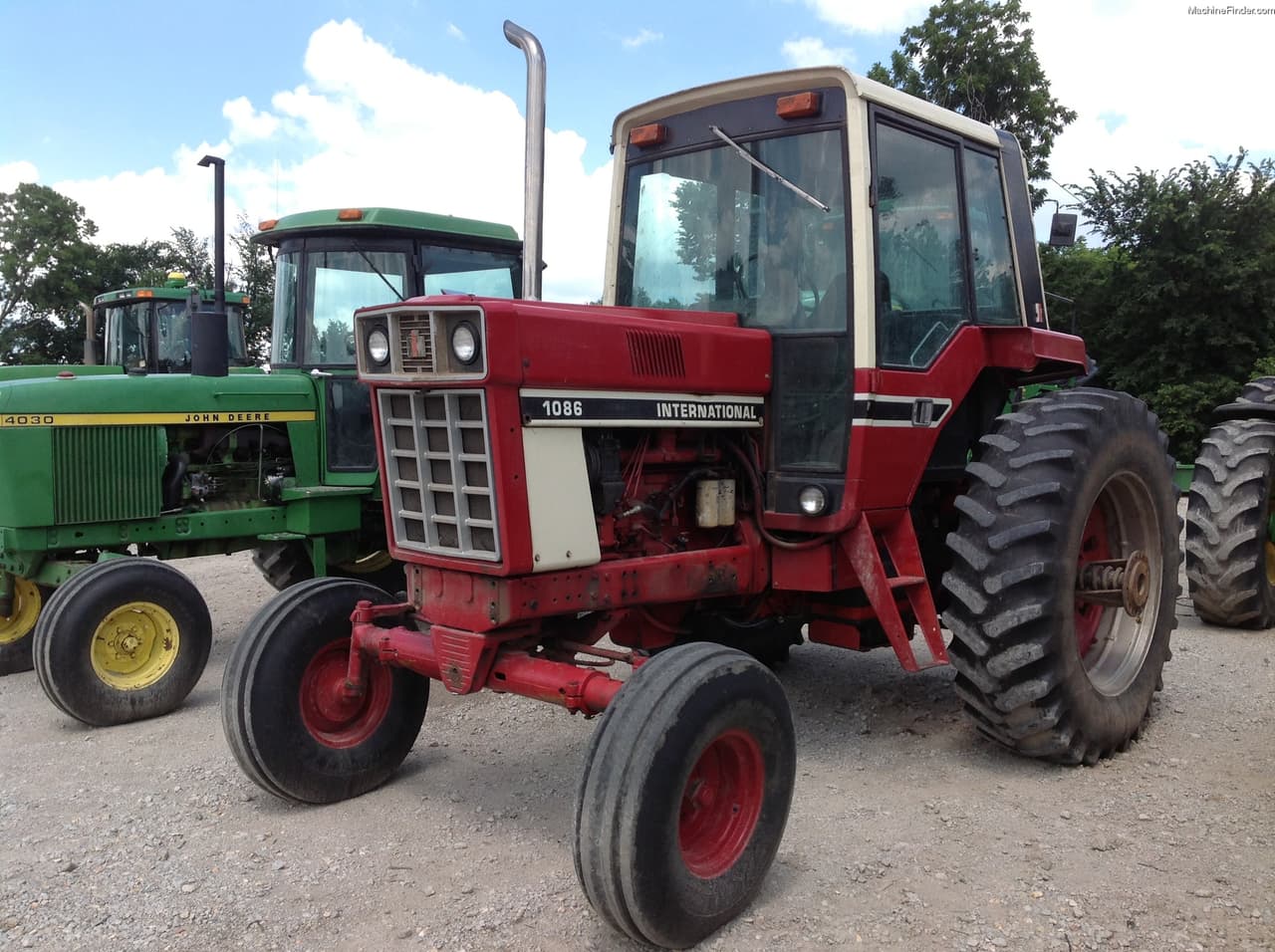

International Harvester 1086

Last Updated: June 2024

Overview

The International Harvester 1086 is a 2WD or 4WD row-crop tractor part of the 86 series, manufactured by International Harvester in Rock Island, Illinois, USA from 1976 to 1981. It is powered by a 6.8 liter, six-cylinder turbocharged diesel International Harvester DT414 engine, with a bore and stroke of 109 mm and 121 mm respectively, producing up to 130 horsepower. This model features a partial power shift transmission with 16 forward and 8 reverse gears, hydrostatic power steering, hydraulic disc brakes, and standard cabin. The tractor boasts a fuel tank capacity of 238.5 liters for extended operation and a three-point hitch for versatile attachments and implements. The IH 1086 was designed to address various farming needs, offering substantial power and traction for a wide range of row-crop planting and tilling tasks.
Show more...

Key Specifications

Category: Row Crop

Power Output: 130

Transmission: Partial power shift

Drive Type: 2WD or 4WD

Operating Weight: 12715 (2WD)

Fuel Type: Diesel

Image Gallery

International Harvester 1086 Tractor International Harvester 1086 Tractor International Harvester 1086 Tractor International Harvester 1086 Tractor International Harvester 1086 Tractor International Harvester 1086 Tractor

International Harvester 1086 vs. Similar Tractors

Power Output
Average
Greater than 42% of similar tractors.
Operating Weight
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
DT414
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414
Bore (in)
4.29
Stroke (in)
4.76
Rated RPM
2400
Power Output (hp)
130

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
168 (2WD)
Width (in)
102
Height (in)
115 (with cab)
Operating Weight (lb)
12715 (2WD)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD
Drive Type
2WD or 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
25
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1981
Hitch Type
Three-Point Hitch
Hitch Category
Category II/III
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab standard
Starter Type
Electric
Brake Type
Hydraulic disc
Hydraulic System Type
Open center
