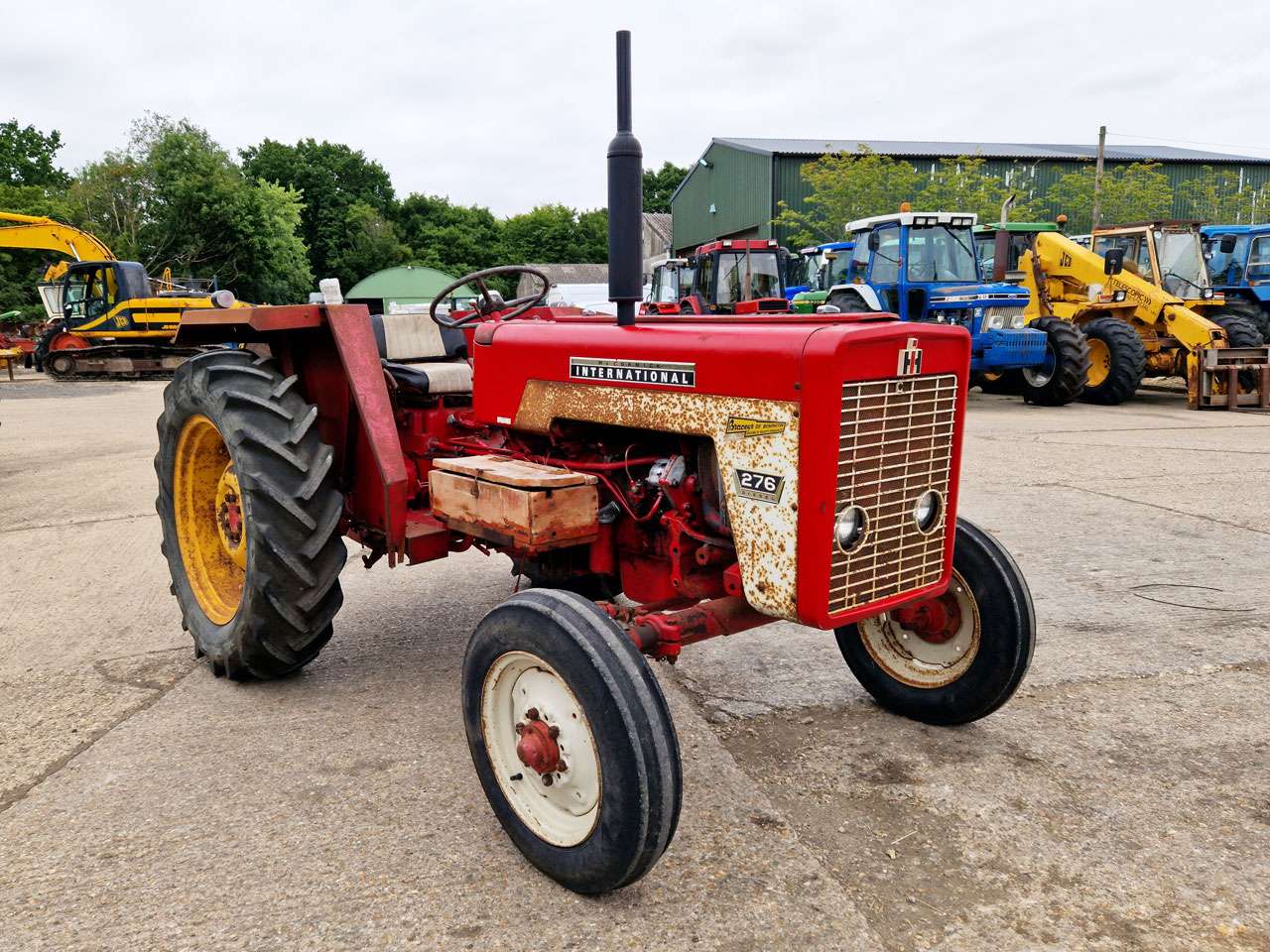

International Harvester 276

Last Updated: June 2024

Overview

The International Harvester 276 is a utility tractor that's built for a variety of tasks around the farm. Equipped with a two-wheel drive, 4x2 chassis, the 276 has a manual steering system and a gear transmission with 8 forward gears and 2 reverse gears, which provides ample range to tackle different jobs effectively. At its heart, the 276 boasts an International Harvester BD-144A engine, a 4-cylinder diesel engine that is liquid-cooled. This power unit offers a power output of 37.5 horsepower with a displacement of 144 cubic inches, ensuring decent performance and reliability. The engine operates at an optimal rated RPM of 1875. The tractor's operating weight of 4189 pounds is well-balanced with its 76.4-inch wheelbase, contributing to its stability during operation. Its length measures 116.14 inches, but other dimensions such as width and height remain unspecified. Despite its simplicity, the International Harvester 276 formed an important part of the machinery lineup for many farmers, particularly noted for its robustness and straightforward maintenance.
Show more...

Key Specifications

Category: Utility

Power Output: 37.5

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4189

Fuel Type: Diesel

International Harvester 276 vs. Similar Tractors

Power Output
Average
Greater than 34% of similar tractors.
Operating Weight
Average
Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
BD-144A
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
144
Bore (in)
3.375
Stroke (in)
4
Rated RPM
1875
Power Output (hp)
37.5

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
116.14
Width (in)
-
Height (in)
-
Operating Weight (lb)
4189

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
10.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
