Allis Chalmers D14

Last Updated: June 2024

Overview

The Allis Chalmers D14 row-crop tractor was produced by Allis Chalmers between 1957 and 1960. It operates on a 149 cubic inch, four-cylinder engine available in gasoline or LP-gas variants with a compression ratio of 7.5:1 for gasoline or 8.5:1 for LP-gas and power output of 37 horsepower at 1650 RPM. It features manual steering, mechanical expanding shoe brakes, and an open operator station. There are two transmission options: a primary sliding gear transmission with 4 forward and 1 reverse gear or a Power-Director transmission with 8 forward and 2 reverse gears. It rides on a 4×2 2WD chassis with a wheelbase of 85.75 inches, ground clearance of 25 inches, and sports 5.50-16 front and 12.00-26 rear agricultural tires. This model has an operating weight of 3500 pounds and utilizes an Allis Snap Coupler hitch system, but the hitch's lift capacity remains unspecified.
Show more...

Key Specifications

Category: Row Crop

Power Output: 37

Transmission: Sliding Gear, Power-Director (optional)

Drive Type: 2WD

Operating Weight: 3500

Fuel Type: Gasoline / LP-gas

Image Gallery

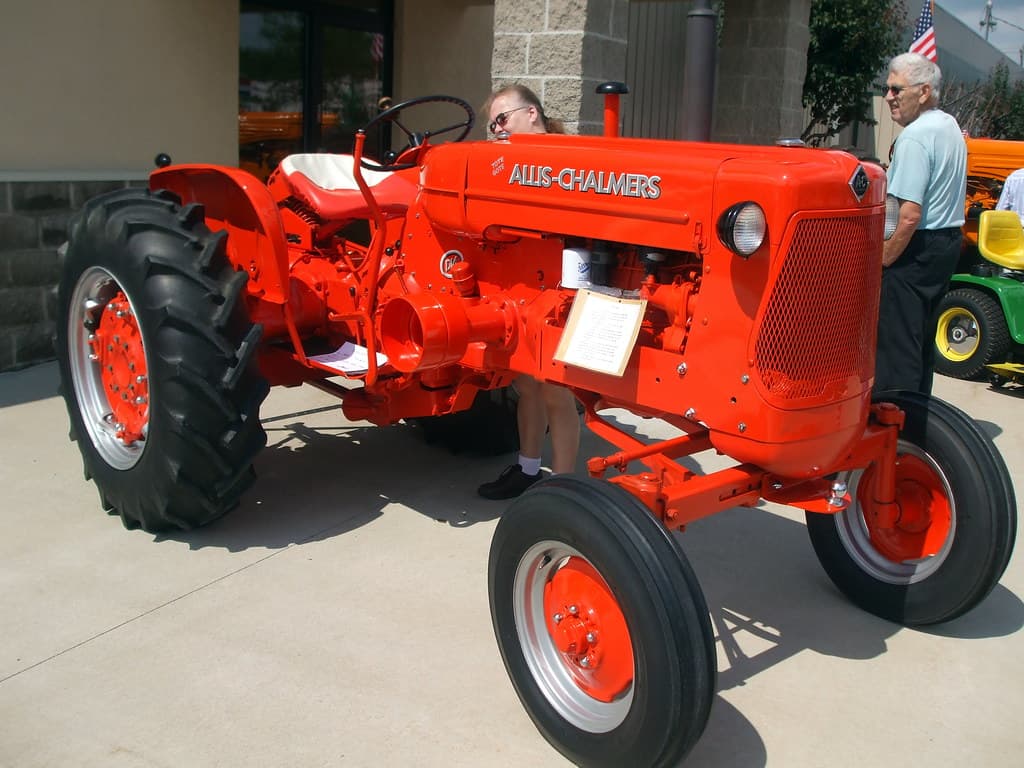

Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor Allis Chalmers D14 Tractor

Allis Chalmers D14 vs. Similar Tractors

Power Output
Poor
Greater than 3% of similar tractors.
Operating Weight
Below Average
Greater than 17% of similar tractors.

Technical Specifications

Engine

Manufacturer
Allis-Chalmers
Model
Allis-Chalmers
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline / LP-gas
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
149
Bore (in)
3.5
Stroke (in)
3.875
Rated RPM
1650
Power Output (hp)
37

Transmission

Type
Sliding Gear, Power-Director (optional)
Forward Gears
4 (Sliding Gear) / 8 (Power-Director)
Reverse Gears
1 (Sliding Gear) / 2 (Power-Director)
Total Gears
-

Dimensions

Length (in)
128.7
Width (in)
-
Height (in)
79.5 (hood), 79.56 (exhaust)
Operating Weight (lb)
3500

Power Take-Off (PTO)

PTO Type
Rear PTO, Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4×2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
9
Front Tire Diameter (in)
16
Front Tire Width (in)
5.5
Rear Tire Diameter (in)
26
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1960
Hitch Type
Allis Snap Coupler
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Mechanical expanding shoe
Hydraulic System Type
-
