Bolens 1050

Last Updated: June 2024

Overview

The Bolens 1050 is a 2-wheel drive garden tractor from the Tube Frame series. It was manufactured by Bolens between 1966 to 1969. The tractor is outfitted with either a Wisconsin TR-10D or TRA-10D engine, both single-cylinder gasoline engines with different displacements. Accommodating a gear type transmission, the tractor incorporates 6 forward and 2 reverse gears. Other features include manual steering, an open operator station, and a fuel tank that can hold up to 4.7 liters of gasoline. The 1050 model can be equipped with a variety of attachments, adding to its versatility and usefulness in various gardening tasks.

Key Specifications

Category: Lawn and Garden

Power Output: 10

Transmission: Gear

Drive Type: 2WD

Operating Weight: 644

Fuel Type: Gasoline

Image Gallery

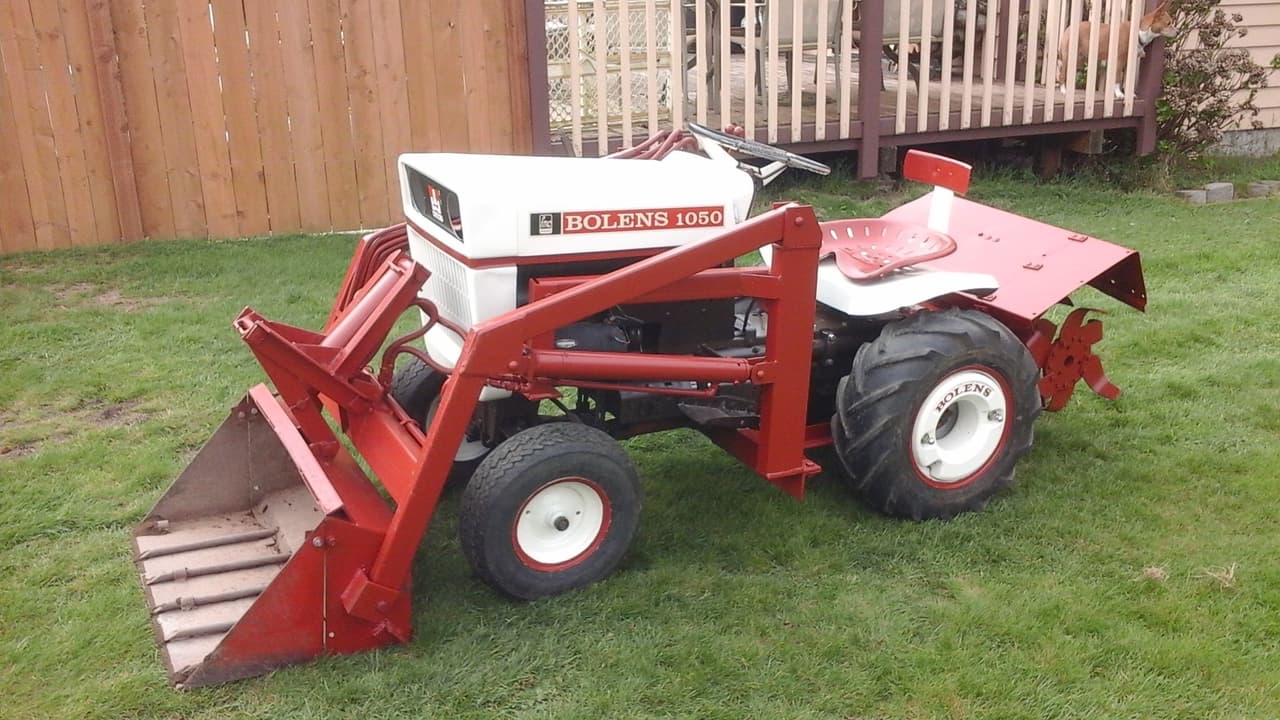

Bolens 1050 Tractor

Bolens 1050 vs. Similar Tractors

Power Output

Poor

Greater than 10% of similar tractors.

Operating Weight

Average

Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer: Wisconsin
Model: TR-10D / TRA-10D
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 1
Displacement (ci): 20.2 or 22 (depending on the engine model)
Bore (in): 3.11
Stroke (in): 2.64 or 2.87 (depending on the engine model)
Rated RPM: 3800
Power Output (hp): 10

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 63
Width (in): 33.9
Height (in): 39.8
Operating Weight (lb): 644

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 1969
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Manual External Compression Band
Hydraulic System Type: -
