Cub Cadet 100

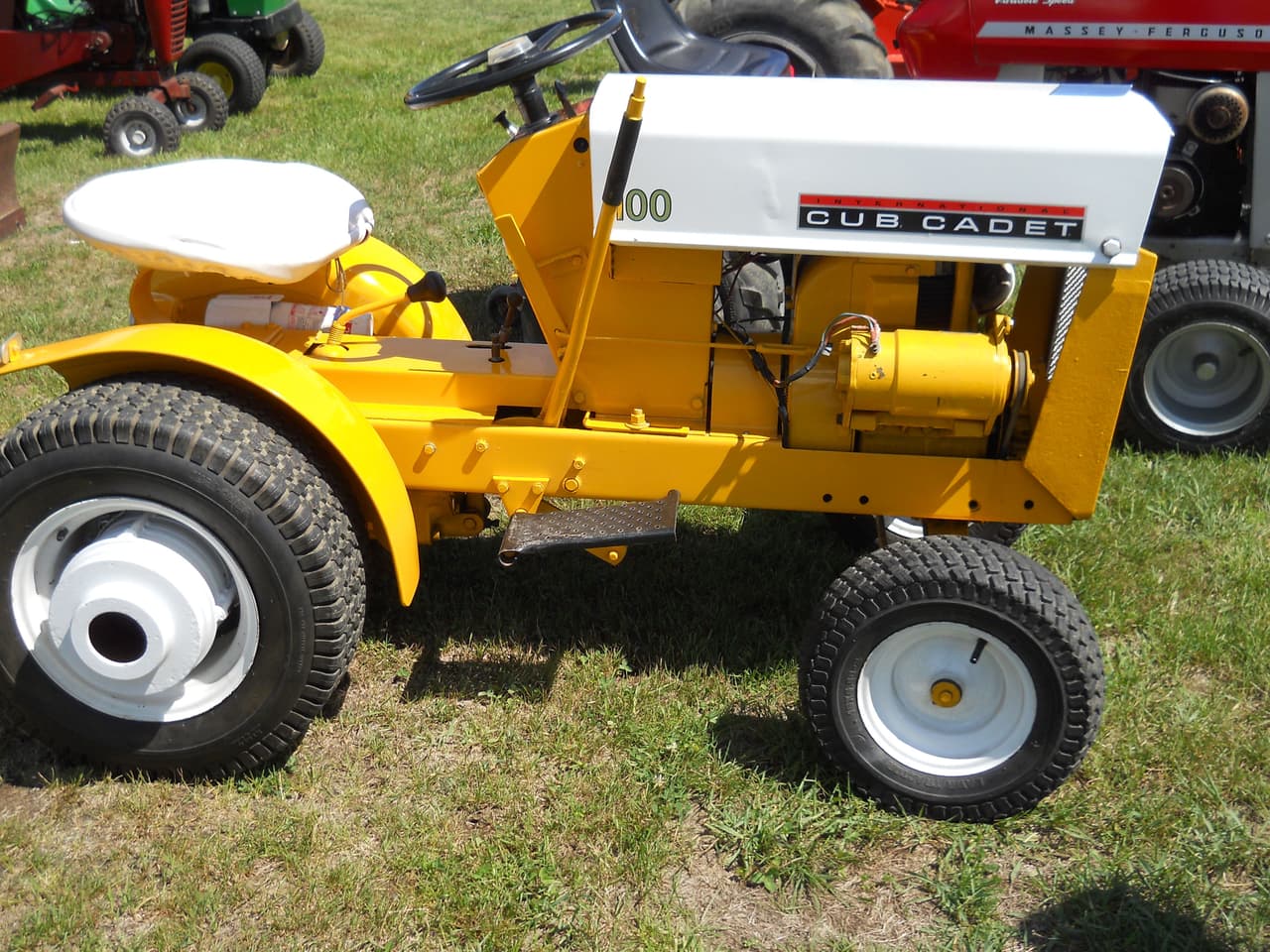

The Cub Cadet 100 is a 2WD garden tractor from the series. This tractor was manufactured by Cub Cadet, a part of International Harvester, in Louisville, Kentucky, USA from 1963 to 1965. It is equipped with a 0.4 L single-cylinder gasoline engine and one of two transmissions: a shaft-driven gear type with 3 forward and 1 reverse gear or a creeper transmission with 6 forward and 2 reverse gears. The garden tractor uses the Kohler K241 engine, which has a displacement of 391 cm2 or 23.9 cubic inches. It has a cylinder bore of 82.6 mm and a piston stroke of 73.0 mm, producing a maximum output power of 10 HP. The Cub Cadet 100 also features manual steering, dry disc brakes, an open operator station, and a fuel tank with a capacity of 6.2 liters.
