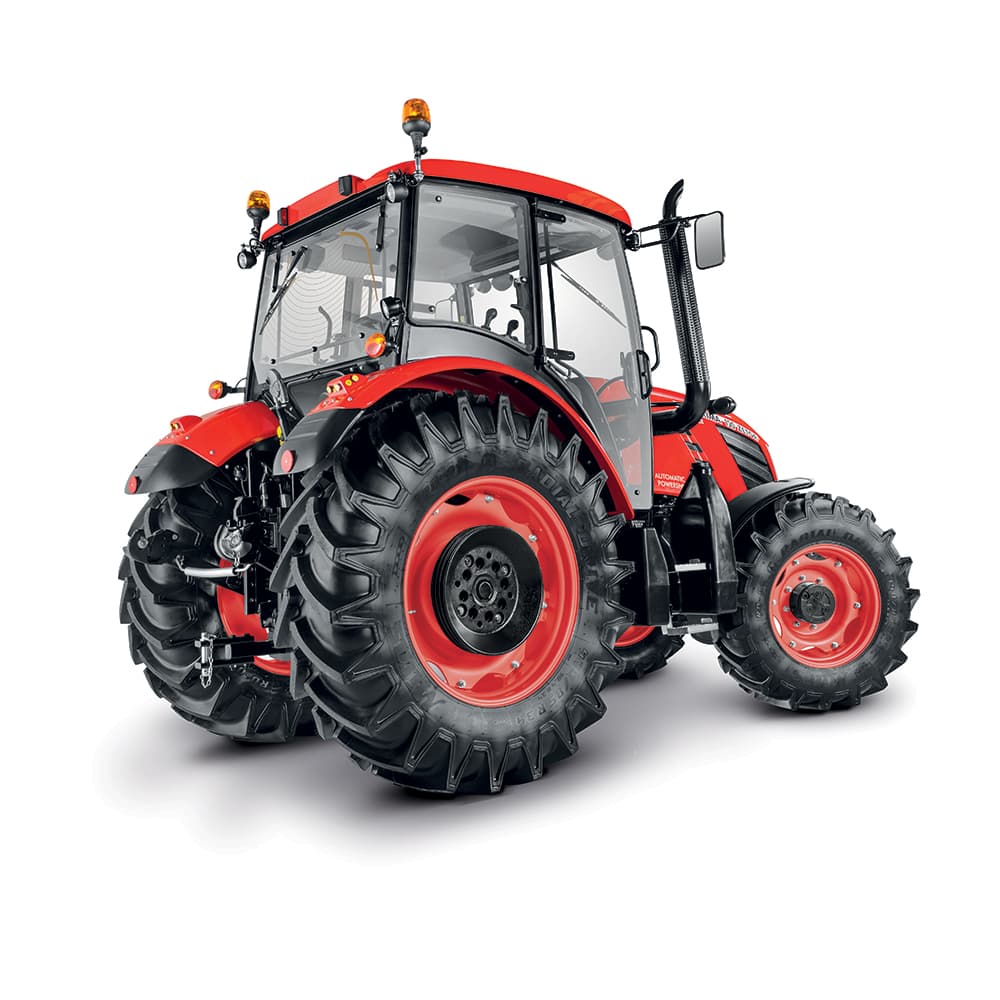

Zetor Proxima Power 120

Last Updated: June 2024

Overview

The Zetor Proxima Power 120 is a utility tractor known for its reliability and robust design. This model is equipped with a 4-wheel drive system, indicating its suitability for a variety of demanding tasks and terrain types. The power steering provides easier maneuverability. At the heart of the tractor is a Zetor 1405 turbocharged diesel engine that generates a respectable 117 horsepower at 2200 RPM. With a liquid cooling system and an 8-valve configuration, it delivers consistent performance suitable for an array of agricultural tasks. The three-speed power shift transmission with electro-hydraulic wet disc clutch offers 24 forward and reverse gears, adding to its versatility. The tractor's wet disc clutch promises durability and a longer service life. The dimensions and weight make it a sizable presence in the field, highlighting the strength and stability required for utility work. While specifics like the hitch lift capacity and hydraulic system type are not detailed, the tractor's category II rear hitch suggests it's capable of handling a variety of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 117

Transmission: Three-speed power shift

Drive Type: 4WD

Operating Weight: 8818

Fuel Type: Diesel

Zetor Proxima Power 120 vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.
Operating Weight
Average
Greater than 59% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
1405
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
117

Transmission

Type
Three-speed power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
153.7
Width (in)
75.2
Height (in)
107
Operating Weight (lb)
8818

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
