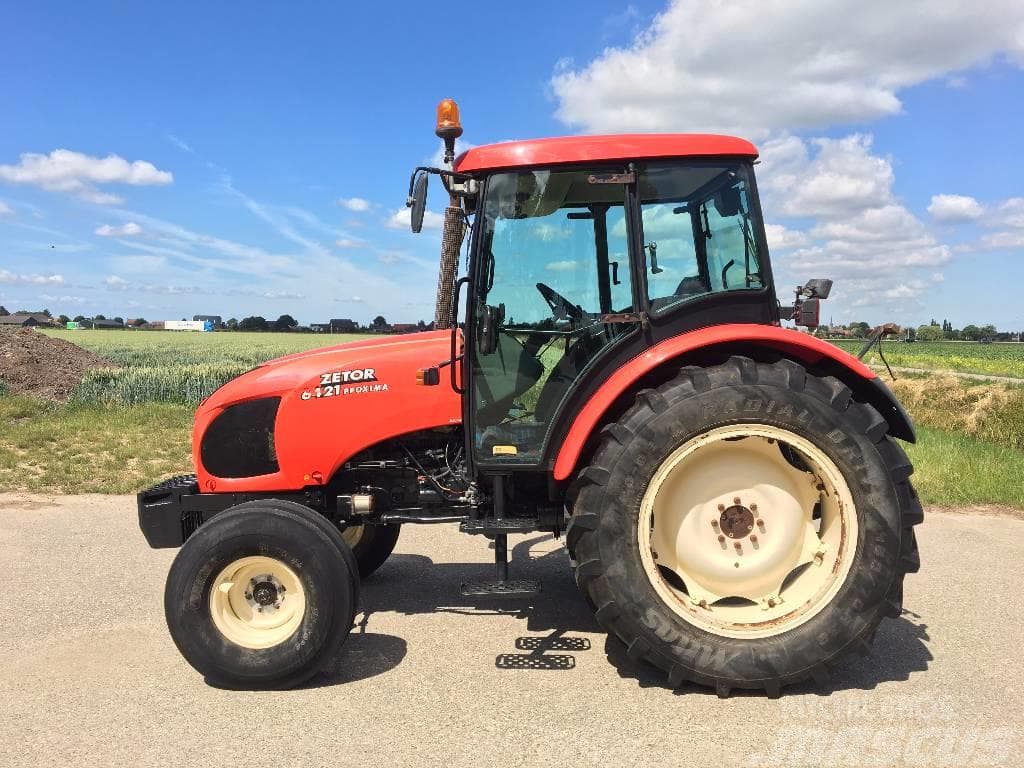

Zetor Proxima 8421

Last Updated: June 2024

Overview

The Zetor Proxima 8421 is a utility tractor that comes equipped with a 4-cylinder, 84 hp turbocharged diesel engine and a syncromesh transmission featuring 10 forward and 2 reverse gears. With a chassis setup as 4x2 2WD and a mechanical shuttle transmission also available, this tractor provides a robust drivetrain for a variety of tasks. Its liquid-cooled engine, with a rated RPM of 2200 and a total displacement of 254 cubic inches, is designed for durability and consistent performance. The tractor's operating weight is 7440 lbs, standing on agricultural tires with a size of 9.00-16 in the front and 16.9-34 in the rear, supporting its sturdy frame. Measuring 152 inches in length and 73 inches in width, it has options for both ROPS at the height of 103 inches and a cab height of 102 inches, ensuring comfort and safety for the operator. This model brings reliable performance to farming tasks whether in the fields or during transport.
Show more...

Key Specifications

Power Output: 84

Transmission: Syncromesh

Drive Type: 2WD

Operating Weight: 7440

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
254
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
84

Transmission

Type
Syncromesh
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
152
Width (in)
73
Height (in)
103 (ROPS), 102 (cab)
Operating Weight (lb)
7440

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
9
Rear Tire Diameter (in)
34
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Rear Type II/I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab (both provided, specific type unknown)
Starter Type
Electric (12 volts implied)
Brake Type
-
Hydraulic System Type
Open Center
