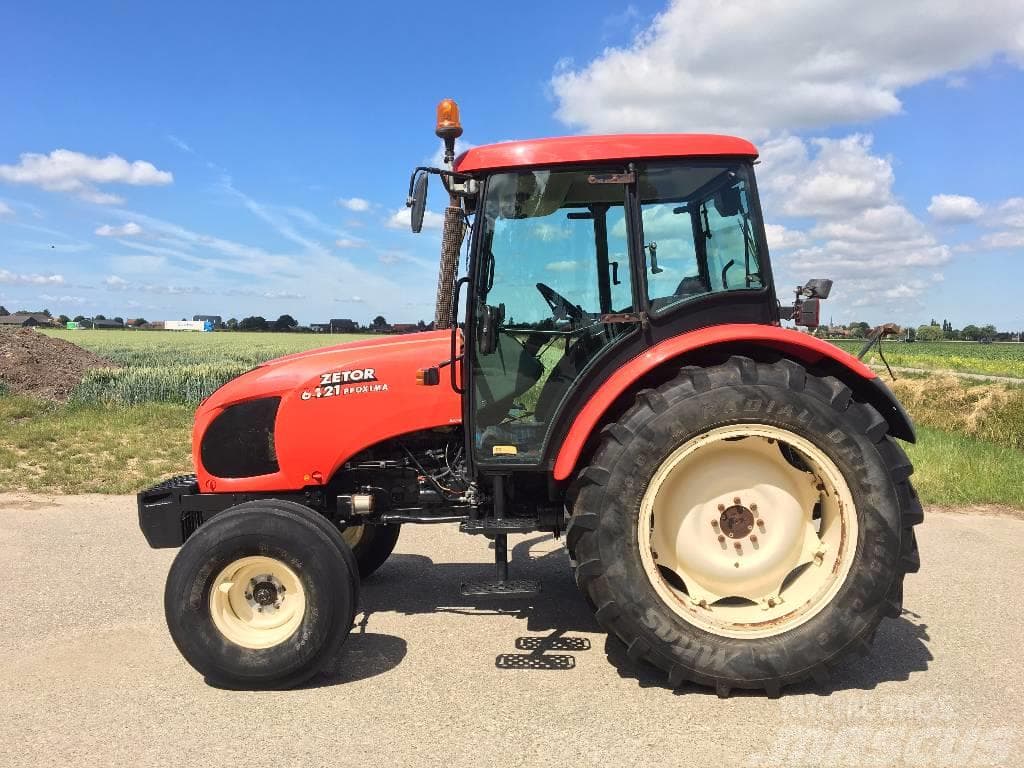

Zetor Proxima 6421

Last Updated: June 2024

Overview

The Zetor Proxima 6421 is a rugged and versatile tractor designed for a variety of tasks. With its 4-cylinder, turbocharged diesel engine capable of producing 64 horsepower at 2200 rpm, this tractor offers the power needed for moderate farming duties, all within a 2WD chassis configuration. It is equipped with a liquid-cooled engine system to ensure consistent performance under heavy loads. The Proxima 6421 features a 10-speed syncromesh transmission with a mechanical shuttle, allowing for 12 gears in both forward and reverse motions. This enables smooth transition and versatility in various field conditions. The tractor stands on agricultural tires with sizes 9.00-16 for the front and 16.9-30 for the rear, providing stable traction. Its open-center hydraulic system is well-suited for different implements. Whether equipped with ROPS or a cab, the Proxima 6421 provides a comfortable and safe operating environment. The tractor's 3-point hitch system conforms to Category 2/1 standards, complementing its operational versatility.
Show more...

Key Specifications

Power Output: 64

Transmission: Syncromesh with mechanical shuttle

Drive Type: 2WD

Operating Weight: 7240

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
254
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
64

Transmission

Type
Syncromesh with mechanical shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
152
Width (in)
73
Height (in)
102 (with cab), 103 (with ROPS)
Operating Weight (lb)
7240

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
9
Rear Tire Diameter (in)
30
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 2/1
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Both Open (ROPS) and Cab Configuration Available
Starter Type
12 volt electric
Brake Type
-
Hydraulic System Type
Open Center
