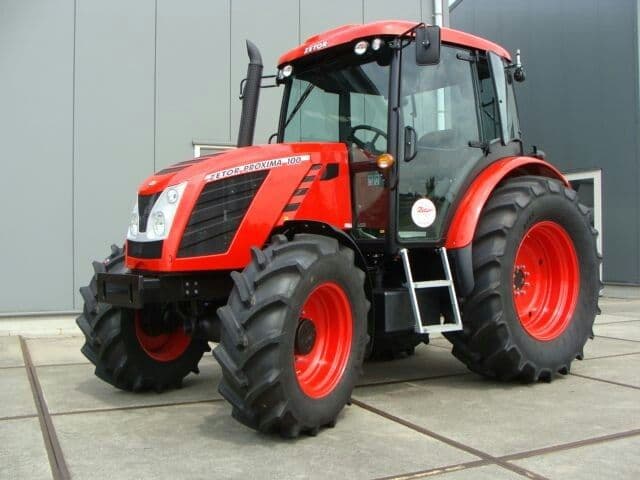

Zetor Proxima 100

Last Updated: June 2024

Overview

The Zetor Proxima 100 is a utility tractor that comes with the option of either a 4x2 two-wheel drive or a 4WD configuration. It is equipped with power steering for easier maneuverability. The tractor boasts a variety of transmission options which include a 10-speed synchromesh, a sync shuttle, and a creeper transmission with up to 20 forward and 4 reverse gears, ensuring a broad range of speeds and precise control for various farming tasks. Its engine, the Zetor 1005, is a turbocharged, liquid-cooled, diesel 4-cylinder with an 8-valve configuration. It displaces 253.6 cubic inches and delivers 96 horsepower at 2200 RPM according to ECE R24 standards, with an electric starter type. Tire options are suited to agricultural use and the tractor measures 152.6 inches in length, 75.2 inches in width, and 105.2 inches in height for the 4WD version, which weighs 8003 pounds. The tractor's capabilities are further enhanced by its compliance with Stage III emissions standards.
Show more...

Key Specifications

Category: Utility

Power Output: 96 (ECE R24)

Transmission: Synchromesh, Sync Shuttle, Creeper

Drive Type: 2WD or 4WD

Operating Weight: 8003 for 4WD (assuming 4WD)

Fuel Type: Diesel

Zetor Proxima 100 vs. Similar Tractors

Power Output
Excellent
Greater than 99% of similar tractors.
Operating Weight
Above Average
Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
1005
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
96 (ECE R24)

Transmission

Type
Synchromesh, Sync Shuttle, Creeper
Forward Gears
20 (assuming the highest number provided is correct, given multiple options)
Reverse Gears
4 (assuming the highest number provided is correct, given multiple options)
Total Gears
-

Dimensions

Length (in)
152.6
Width (in)
75.2
Height (in)
105.2 for 4WD (assuming 4WD)
Operating Weight (lb)
8003 for 4WD (assuming 4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4WD
Drive Type
2WD or 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (agricultural)
Manufacture - End Year
-
Hitch Type
Rear Type II
Hitch Category
Unknown (Category provided does not match available information)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
