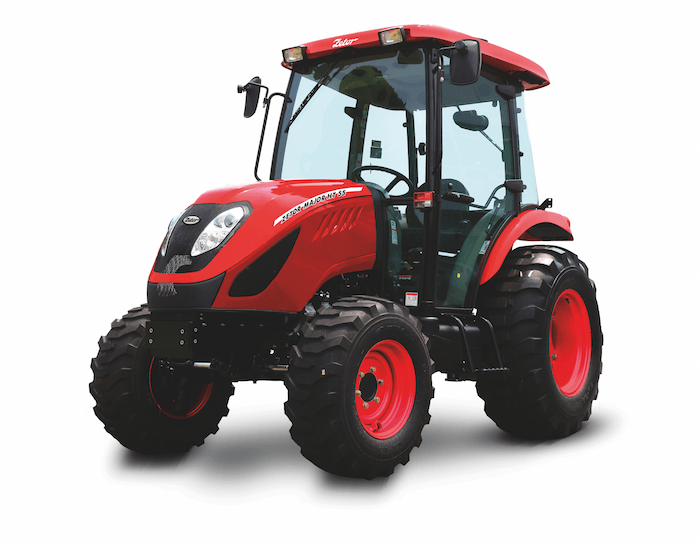

Zetor Major HT 55

Last Updated: June 2024

Overview

The Zetor Major HT 55 is a utility tractor that is designed with both functionality and durability in mind. With a powerful Yanmar 4TNV86T, 4-cylinder, liquid-cooled, turbocharged diesel engine, this tractor offers a gross power output of 55.1 hp at a rated RPM of 2800. Its hydrostatic transmission provides a smooth operation and allows for infinite gear ranges both in forward and reverse motion, which can be particularly useful for tasks that require precision control. The Major HT 55 features a 4WD chassis equipped with power steering, enhancing maneuverability in various conditions. The overall operating weight is 4233 lbs and the tractor sports a comfortable cab for the operator station. The open-center hydraulic system provides dependable power to tractor attachments, although specifics like PTO speed and hitch lift capacity are not detailed in the provided data. The Zetor Major HT 55's combination of power, ease of use, and comfort makes it well-suited for a range of utility tasks on a farm or large property.
Show more...

Key Specifications

Category: Utility

Power Output: 55.1

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 4233

Fuel Type: Diesel

Zetor Major HT 55 vs. Similar Tractors

Power Output
Average
Greater than 54% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
4TNV86T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
127.6
Bore (in)
3.39
Stroke (in)
3.54
Rated RPM
2800
Power Output (hp)
55.1

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
141.3
Width (in)
63.8
Height (in)
99.6
Operating Weight (lb)
4233

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 9.5-16. Rear: 13.6-26. Industrial front: 12-16.5. Industrial rear: 17.5L-24
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
