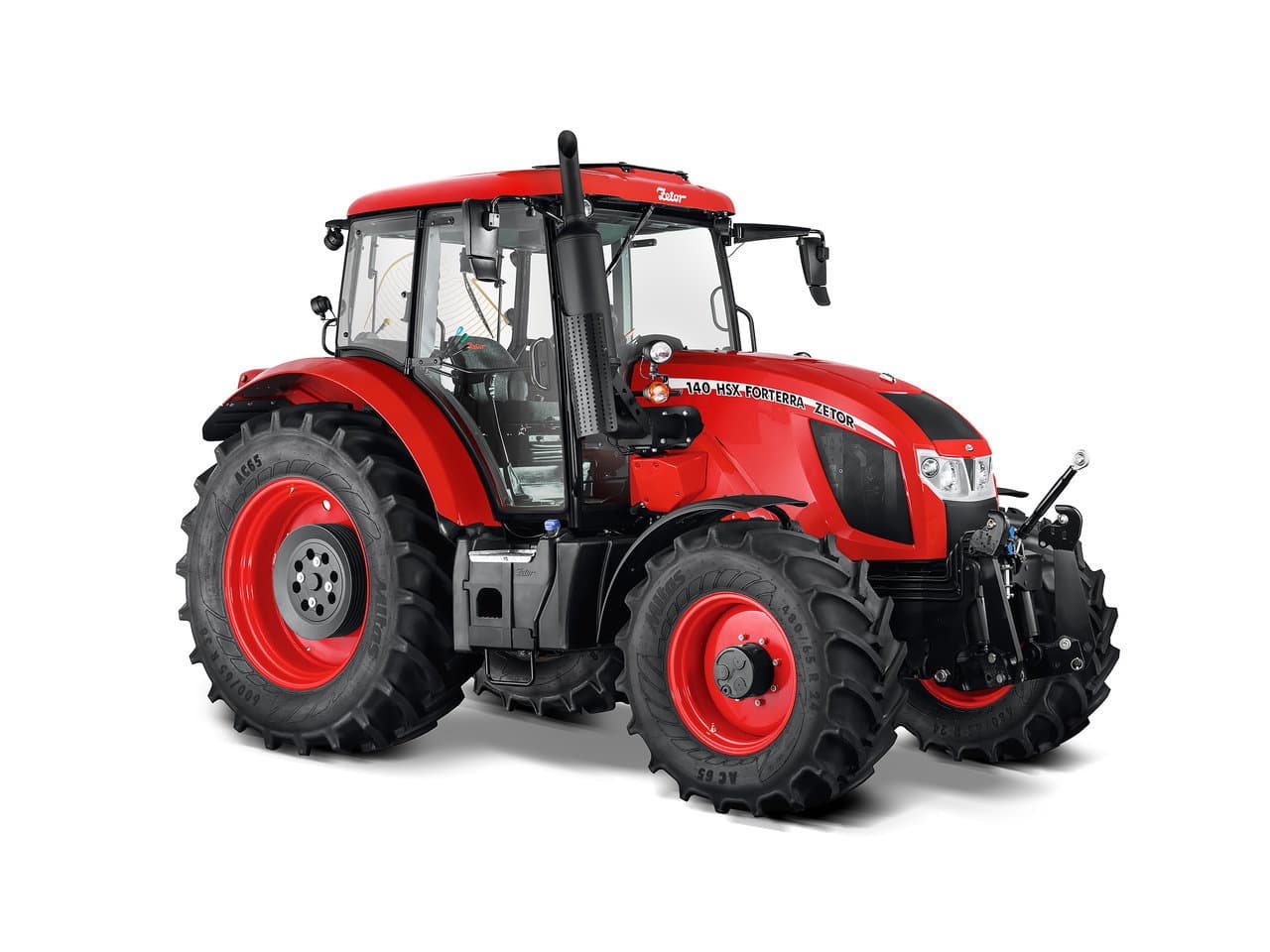

Zetor Forterra 140

Last Updated: June 2024

Overview

The Zetor Forterra 140 is a utility tractor equipped with Four-wheel drive (4WD) articulated by a 4x4 MFWD chassis. It is powered by a Zetor Z 1606 engine that features a turbocharged intercooled diesel system with four cylinders and a 16-valve configuration. This engine offers an impressive 136 horsepower and a displacement of 253.6 cubic inches. Its cooling system is liquid-based, ensuring efficient heat management during operations. At a rated 2200 RPM, the tractor generates a hefty torque, further amplified by a high-capacity 24-speed forward and 18-speed reverse transmission setup. Standing at 111.4 inches tall with a cab and weighing 10274 pounds, the Forterra 140 provides significant power for a range of agricultural applications. The tractor rides on agricultural radial tires with sizes 420/70R24 in the front and 520/70R38 at the rear. With a sturdy build and power steering, the Forterra 140 models a balance of maneuverability and strength, built to handle demanding tasks on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 136

Drive Type: 4WD

Operating Weight: 10274

Fuel Type: Diesel

Zetor Forterra 140 vs. Similar Tractors

Power Output
Above Average
Greater than 90% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
Z 1606
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
136

Transmission

Type
-
Forward Gears
24
Reverse Gears
18
Total Gears
42

Dimensions

Length (in)
183.9
Width (in)
-
Height (in)
111.4
Operating Weight (lb)
10274

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
33.58 (Based on the metric conversion of 420/70R24)
Front Tire Width (in)
-
Rear Tire Diameter (in)
41.34 (Based on the metric conversion of 520/70R38)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural radial
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
