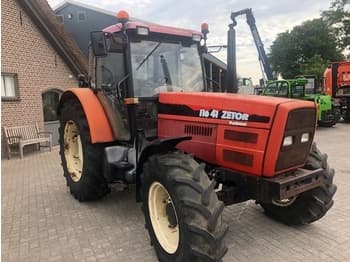

Zetor Forterra 11641

Last Updated: June 2024

Overview

The Zetor Forterra 11641 is a utility tractor designed with a balanced combination of power and functionality, suitable for a range of agricultural tasks. It's equipped with a 4x4 MFWD 4WD chassis, which enhances its capability across diverse terrains. The tractor is powered by a SAME 1006.6W engine, providing a reliable 110 horsepower for heavy-duty work. Engineered with a turbocharged, six-cylinder liquid-cooled diesel engine, it offers strong performance and durability. The tractor's power is managed through a synchronized transmission system, featuring 24 forward and 18 reverse gears, complemented by a hydraulic dry disc clutch which facilitates efficient operation. The tractor's power steering provides an easier handling experience during long working hours. The Forterra 11641 is designed for comfort and efficiency, ensuring productivity in the agricultural environment.
Show more...

Key Specifications

Category: Utility

Power Output: 110

Transmission: Synchronized

Drive Type: 4WD

Operating Weight: 9811

Fuel Type: Diesel

Zetor Forterra 11641 vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1006.6W
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
366.1
Bore (in)
4.13
Stroke (in)
4.55
Rated RPM
2350
Power Output (hp)
110

Transmission

Type
Synchronized
Forward Gears
24
Reverse Gears
18
Total Gears
-

Dimensions

Length (in)
182.7
Width (in)
-
Height (in)
106.7
Operating Weight (lb)
9811

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
