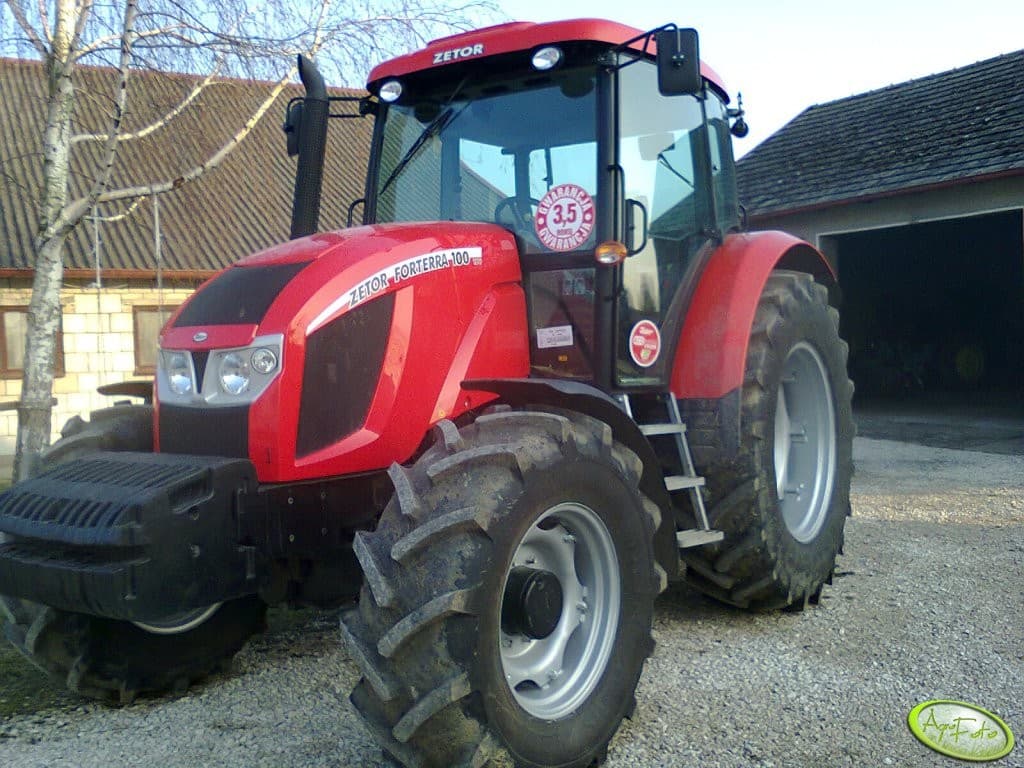

Zetor Forterra 100

Last Updated: June 2024

Overview

The Zetor Forterra 100 is a durable and robust tractor designed for a variety of agricultural tasks. Its 4-cylinder, 16-valve, turbocharged and intercooled diesel engine provides a solid 96 horsepower, suiting it for both fieldwork and transport. With a 24-speed transmission and 18 reverse gears, it allows for a wide range of operations. The power steering, combined with a comfortable cab, enhances operator comfort during long working hours. The chassis with its 4x4 MFWD 4WD configuration ensures good traction and handling on different terrains. The tractor's large tires, measuring 420/70R24 in the front and 520/70R38 in the rear, contribute to its stability and performance. The weight of 10,274 lbs and a wheelbase of 98 inches provide the tractor with a sturdy foundation for a variety of implements. Although the exact dates of manufacturing are unknown, it adheres to Stage IIIB emissions standards, signifying a fairly recent design likely suitable for modern environmental compliance requirements.
Show more...

Key Specifications

Power Output: 96

Drive Type: 4WD

Operating Weight: 10274

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Zetor
Model
Z 1006
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
16-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
4
Displacement (ci)
253.6
Bore (in)
4.13
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
96

Transmission

Type
-
Forward Gears
24
Reverse Gears
18
Total Gears
-

Dimensions

Length (in)
183.9
Width (in)
-
Height (in)
111.4
Operating Weight (lb)
10274

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
