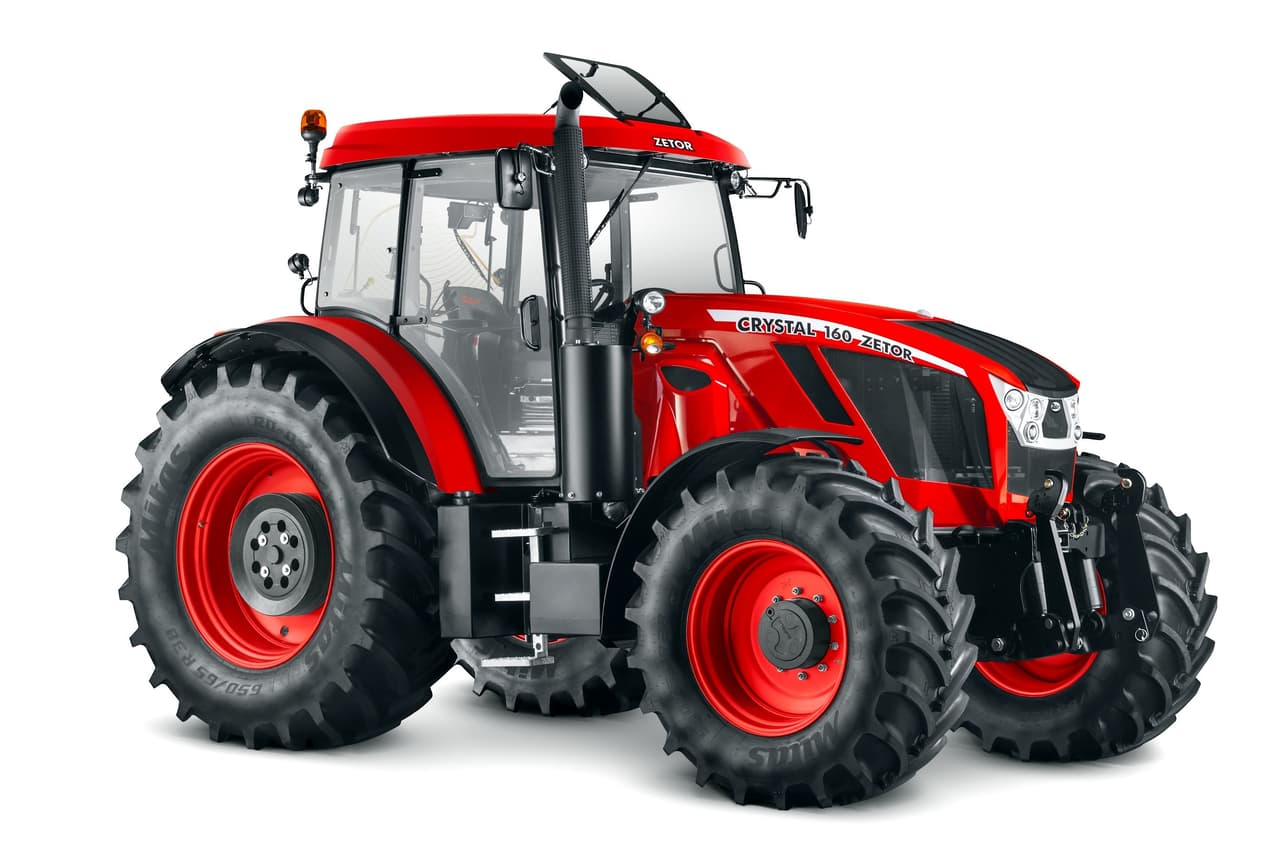

Zetor Crystal 160

Last Updated: June 2024

Overview

The Zetor Crystal 160 is a robust row-crop tractor designed to handle a variety of agricultural tasks. With a chassis of 4x4 MFWD 4WD, it offers significant traction and mobility in various terrain conditions. Its power steering facilitates easier handling, while the 30-speed transmission with a five-gear range coupled with a three-speed power shift provides ample options for speed and torque adjustments. A powerful Deutz turbocharged intercooled diesel engine, the TCD 6.1 L6, lies at the heart of this machine, boasting a displacement of 369.6 cubic inches and producing rated and maximum powers of 163 hp and 171 hp, respectively. The tractor's valve configuration is likely an OHV, given it has six cylinders and 24 valves. This tractor weighs 12,875 pounds and measures 227.2 inches in length, 100.4 inches in width, and 117 inches in height to the top of the cab. The Zetor Crystal 160 features a Category 3 hitch type and comes equipped with a cab operator station, ensuring comfort and protection in all weather conditions. The tractor complies with Stage IIIB emissions standards, reflecting its adherence to environmental regulations.
Show more...

Key Specifications

Category: Row Crop

Power Output: 163 (rated), 171 (maximum)

Transmission: 30-speed Five gears in two ranges with three-speed power shift

Drive Type: 4WD

Operating Weight: 12875

Fuel Type: Diesel

Zetor Crystal 160 vs. Similar Tractors

Power Output
Average
Greater than 60% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
TCD 6.1 L6
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
OHV (assumed from “6-cylinder 24-valve”)
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
369.6
Bore (in)
3.98
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
163 (rated), 171 (maximum)

Transmission

Type
30-speed Five gears in two ranges with three-speed power shift
Forward Gears
-
Reverse Gears
-
Total Gears
30

Dimensions

Length (in)
227.2
Width (in)
100.4
Height (in)
117
Operating Weight (lb)
12875

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category 3 (assumed from “Rear Type: III”)
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (assumed from “Height (cab)”)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
