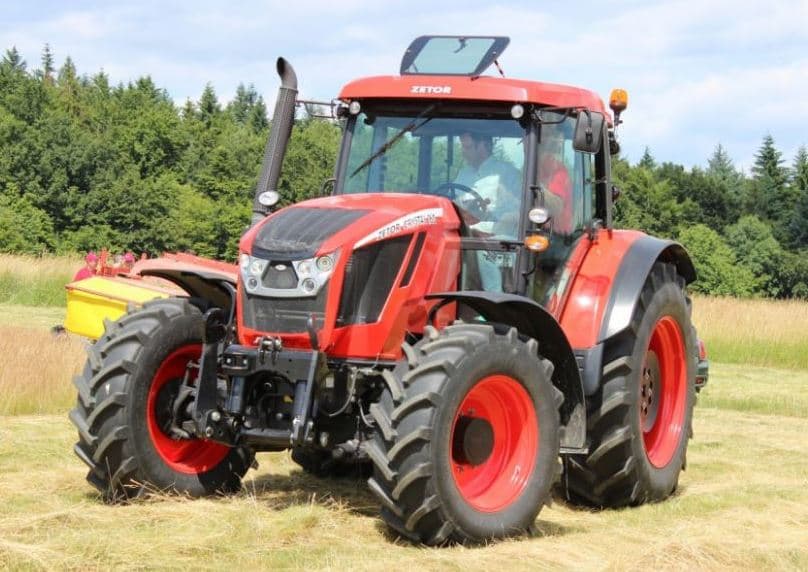

Zetor Crystal 150

Last Updated: June 2024

Overview

The Zetor Crystal 150 is a row-crop tractor that incorporates a Deutz TCD 6.1 L6 engine, with a turbocharged and intercooled setup, featuring 24 valves and a displacement of 369.6 cubic inches. Rated at 144 horsepower with a peak output of 150 horsepower at 2100 RPM, and a viscous fan for cooling, it is designed for robust and efficient operation in various agricultural tasks. The tractor's 4x4 MFWD 4WD chassis shows its capabilities for off-road and field conditions, and the power steering contributes to easier maneuverability. The 30-speed powershift transmission with a wet disc clutch suggests a tractor geared towards versatility and the ability to handle a wide range of tasks easily. Its large size, with a length of 227.2 inches and the weight at 12875 lbs, implies substantive pulling power and stability. The Zetor Crystal 150 also features a modern cab for the operator's comfort during long working hours.
Show more...

Key Specifications

Category: Row Crop

Power Output: 144 (Rated), 150 (Maximum)

Transmission: 30-speed powershift

Drive Type: 4WD

Operating Weight: 12875

Fuel Type: Diesel

Zetor Crystal 150 vs. Similar Tractors

Power Output
Average
Greater than 49% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
TCD 6.1 L6
Cooling Type
Liquid-cooled with viscous fan
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
369.6
Bore (in)
3.98
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
144 (Rated), 150 (Maximum)

Transmission

Type
30-speed powershift
Forward Gears
-
Reverse Gears
-
Total Gears
30

Dimensions

Length (in)
227.2
Width (in)
100.4
Height (in)
Unknown (cab height provided)
Operating Weight (lb)
12875

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Unknown (size and capacity classification missing)
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
