Zetor 9520

Last Updated: June 2024

Overview

The Zetor 9520 is a utility tractor equipped with a 4x2 chassis and powered by a turbocharged, liquid-cooled, four-cylinder Zetor Z 1001 diesel engine, with a displacement of 253.6 cubic inches and a power output of 93 horsepower at 2200 RPM. Designed for a variety of farming tasks, the 9520 model offers an 18-speed synchromesh transmission for reliable gear shifting across its 18 forward and 6 reverse gears. It has a weight of 7,509 pounds and dimensions that measure 153.5 inches in length, 75.9 inches in width, and features different heights depending on the presence of a cab or exhaust system. Featured with hydrostatic power steering for ease of control, this tractor is characterized by its robust and straightforward design, suitable for various agricultural operations. It rides on agricultural tires, supports a Category II hitch, and has a rear hitch position. Further details regarding the tractor's PTO speeds, braking system, and specific additional features remain undiscussed due to incomplete data.

Key Specifications

Category: Utility

Power Output: 93

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 7,509

Fuel Type: Diesel

Image Gallery

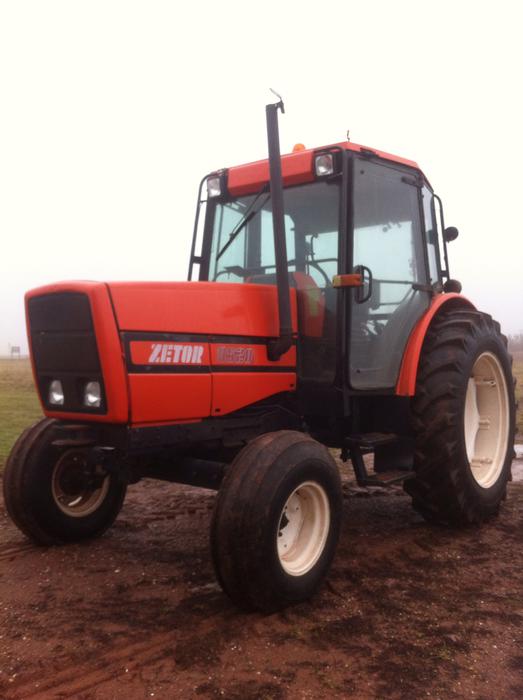

Zetor 9520 Tractor

Zetor 9520 vs. Similar Tractors

Power Output

Above Average

Greater than 78% of similar tractors.

Operating Weight

Poor

Greater than 4% of similar tractors.

Technical Specifications

Engine

Manufacturer: Zetor
Model: Z 1001
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 253.6
Bore (in): 4.134
Stroke (in): 4.724
Rated RPM: 2200
Power Output (hp): 93

Transmission

Type: Synchromesh
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 153.5
Width (in): 75.9
Height (in): 105.7 (cab); 109.6 (exhaust)
Operating Weight (lb): 7,509

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: Category 3 (assumed based on "Rear Type: II", typically matches Hitch Type)
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Unknown (presence of cab height suggests "Cab")
Starter Type: Electric (based on "Engine - Starter volts: 12")
Brake Type: -
Hydraulic System Type: Open
