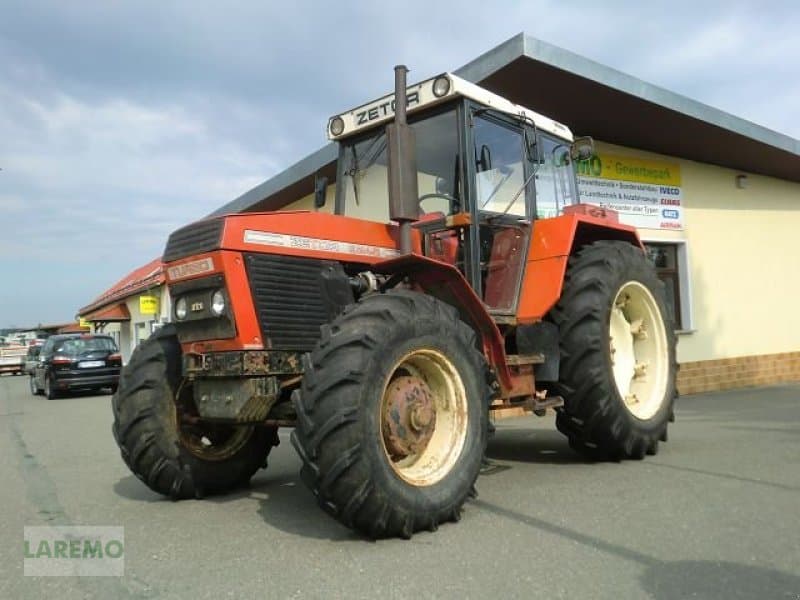

Zetor 9245

Last Updated: June 2024

Overview

The Zetor 9245 is a robust row-crop tractor designed to meet the demanding needs of modern agriculture. Constructed with a 4x4 MFWD 4WD chassis, it features a turbocharged four-cylinder Zetor Z 8002.13 diesel engine that delivers 90 horsepower. The tractor is equipped with a 16-speed synchromesh transmission, offering 16 forward and 8 reverse gears, facilitating a wide range of operations with ease. Steering is power-assisted, improving maneuverability in diverse farming conditions. Sitting on standard agricultural tires with front dimensions of 12.4x24 inches and rear dimensions of 16.9x38 inches, it provides a stable and comfortable ride. The Zetor 9245 has an operating weight of 9634 lbs and a length of 156.7 inches, a width of 76.8 inches, and a height that varies depending on the cab or exhaust configuration, measuring 106.7 inches to the top of the cab and 113.4 inches to the top of the exhaust. This tractor also features an open-center hydraulic system and a Category II type hitch. Its powerful engine and drive system, combined with a well-designed chassis and body, ensure it can tackle a variety of agricultural tasks efficiently.
Show more...

Key Specifications

Category: Row Crop

Power Output: 90

Transmission: Synchromesh

Drive Type: 4WD

Operating Weight: 9634

Fuel Type: Diesel

Zetor 9245 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Average
Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
Z 8002.13
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
278.4
Bore (in)
4.33
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
90

Transmission

Type
Synchromesh
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
156.7
Width (in)
76.8
Height (in)
Height (cab): 106.7 | Height (exhaust): 113.4
Operating Weight (lb)
9634

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
38
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
