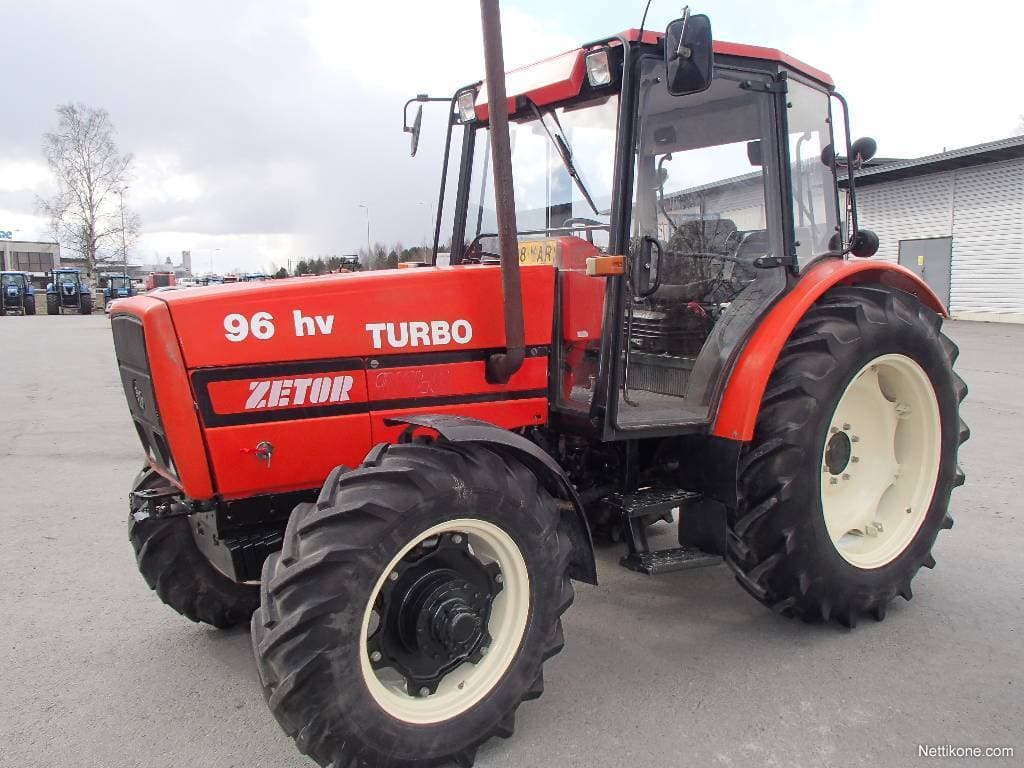

Zetor 9211

Last Updated: June 2024

Overview

The Zetor 9211 is a row-crop tractor known for its robust design and engine performance. Equipped with a Zetor Z 8002.13 turbocharged liquid-cooled diesel four-cylinder engine, it delivers 90 horsepower at a rated RPM of 2200. The tractor's 4x2 2WD chassis and power steering system allow for ease of maneuverability in various farming applications. The synchromesh transmission facilitates smooth shifting with 16 forward and 8 reverse gears, suited for a wide range of tasks. With an operating weight of 8874 lbs and a ground clearance of 16.5 inches, the 9211 proves to be a durable and efficient workhorse on the farm, featuring a 350mm hydraulic dry disc clutch for dependable operation. The dimensions cater to comfort in operation, with a total length of 156.7 inches, width of 76.8 inches, and height including the exhaust system at 111.8 inches. The tractor’s tires are sized at 11.5x15 for the front and 16.9x38 for the rear, following the standard agricultural tire configuration.
Show more...

Key Specifications

Category: Row Crop

Power Output: 90

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 8874

Fuel Type: Diesel

Zetor 9211 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
Z 8002.13
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
278.4
Bore (in)
4.33
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
90

Transmission

Type
Synchromesh
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
156.7
Width (in)
76.8
Height (in)
111.8
Operating Weight (lb)
8874

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
