Zetor 8145

Last Updated: June 2024

Overview

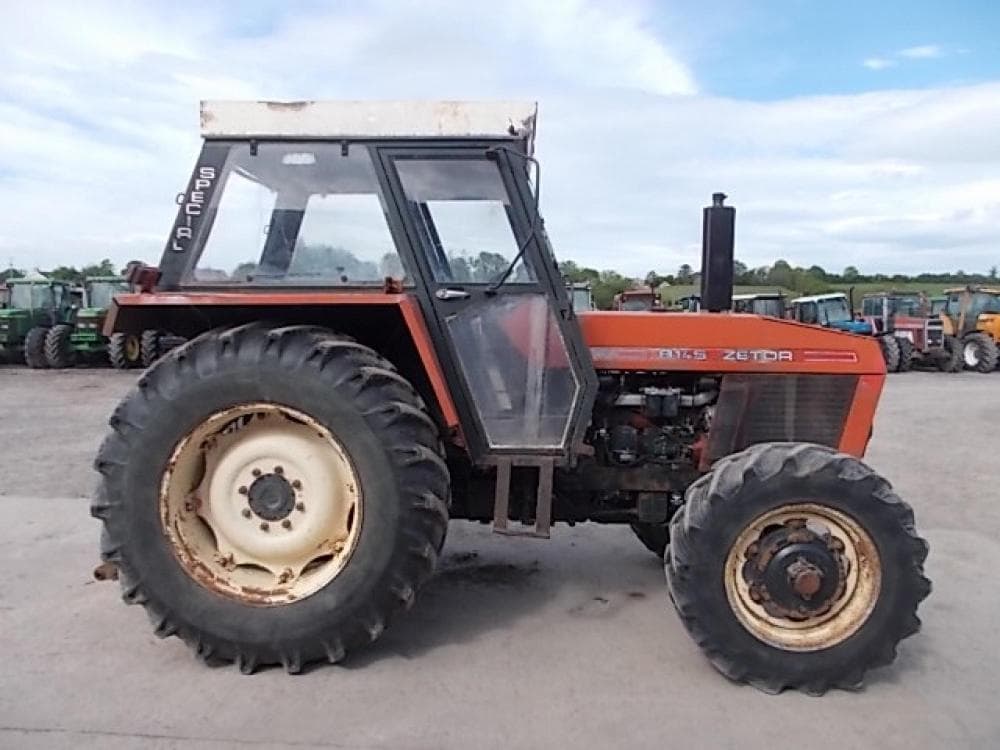

The Zetor 8145 is a utility tractor known for its robust design and suitable for a wide array of farming duties. It features a four-wheel drive (4WD) with a manual constant mesh transmission providing 16 forward and 8 reverse gears. The power steering contributes to easier maneuverability, essential for farm work. It's powered by a Zetor four-cylinder diesel engine with a displacement of 278.4 cubic inches that views to be liquid-cooled. The tractor rides on Ag tires, with a 24-inch diameter in the front and a 38-inch diameter in the back. Its operating weight is 9400 lbs, which helps with traction and stability. The hydraulic system is an open-center type, characteristic of utility tractors for a good balance between efficiency and simplicity. The exact horsepower is unknown, and some other specifications regarding dimensions and features remain unspecified. This tractor accommodates a Category II hitch type but additional details concerning the hitch capabilities are not provided. The Zetor 8145 reflects a focus on reliability and general-purpose farming tasks.
Show more...

Key Specifications

Category: Utility

Transmission: Constant mesh

Drive Type: 4WD

Operating Weight: 9400

Fuel Type: Diesel

Zetor 8145 vs. Similar Tractors

Operating Weight
Average
Greater than 61% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
278.4
Bore (in)
4.331
Stroke (in)
4.724
Rated RPM
-
Power Output (hp)
-

Transmission

Type
Constant mesh
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
9400

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power steering
Coolant Capacity (qts)
19
Front Tire Diameter (in)
24
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open center
