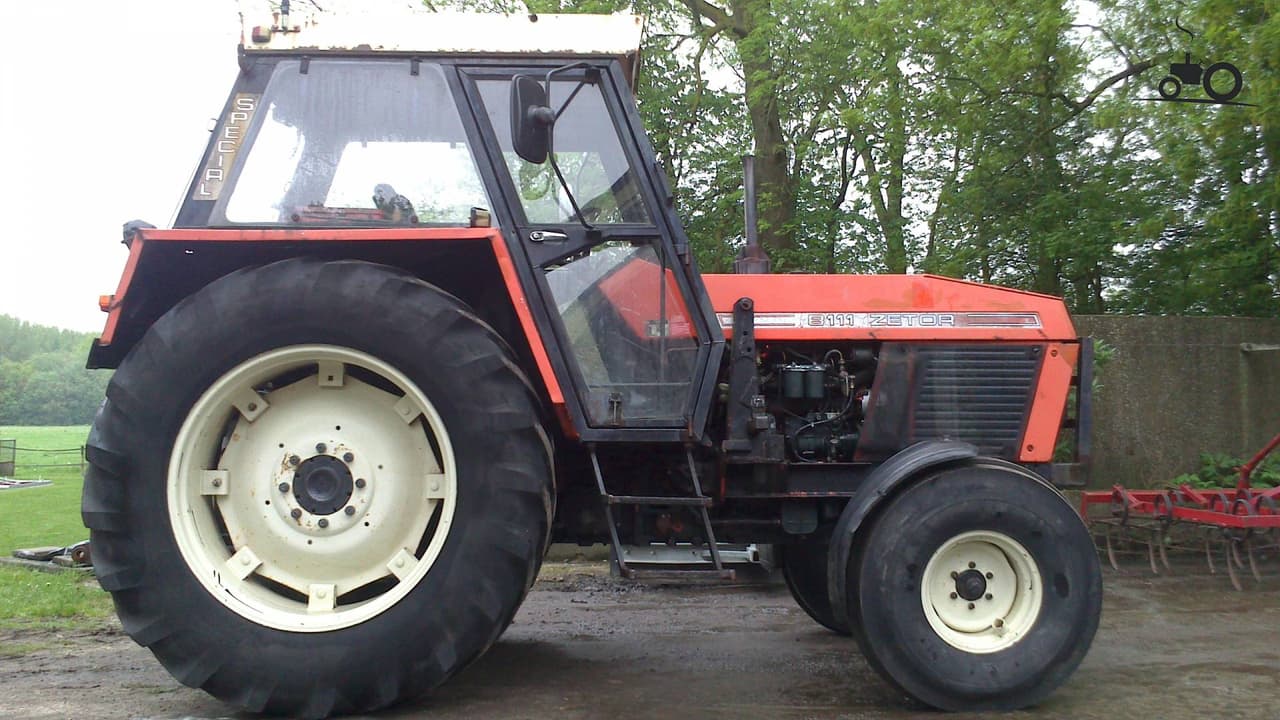

Zetor 8111

Last Updated: June 2024

Overview

The Zetor 8111 is a utility tractor designed to serve in a variety of roles on the farm. With its 4x2 2WD chassis and power steering, it offers a traditional, proven configuration for many agricultural tasks. The engine is a Zetor diesel, four-cylinder, liquid-cooled design with a displacement of 278.4 cubic inches. The transmission is a constant mesh type, providing 16 forward gears and 8 reverse gears to handle various operations. The tractor sits on a 93.9-inch wheelbase, providing stability and maneuverability. It has 19 quarts of coolant capacity and operates with an open center hydraulic system. The robust rear hitch is a Category II type, and the tractor has an operating weight of 8700 pounds, making it well-suited for medium to heavy-duty tasks on the farm. Tire size configurations are 7.50-20 for the front and 16.9-38 for the rear. The specifications and features of the Zetor 8111 reflect its utility focus and its suitability for a broad range of agricultural applications.
Show more...

Key Specifications

Category: Utility

Transmission: Constant mesh

Drive Type: 2WD

Operating Weight: 8700

Fuel Type: Diesel

Zetor 8111 vs. Similar Tractors

Operating Weight
Average
Greater than 59% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
278.4
Bore (in)
4.331
Stroke (in)
4.724
Rated RPM
-
Power Output (hp)
-

Transmission

Type
Constant mesh
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
8700

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
19
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open center
