Zetor 5745

Last Updated: June 2024

Overview

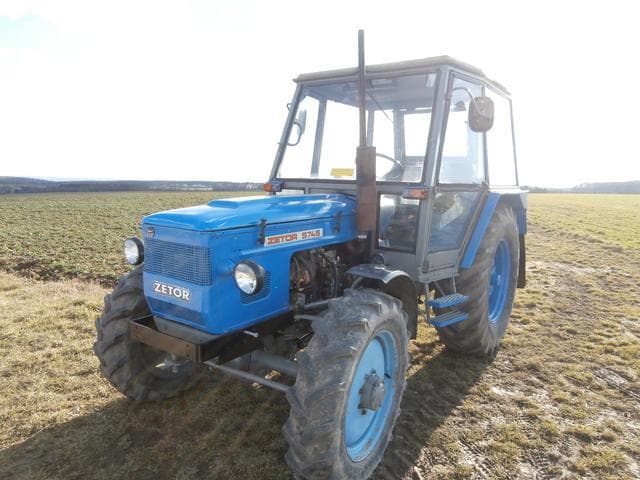

The Zetor 5745 is a 4-wheel drive utility tractor that was manufactured by Zetor. It’s built on a 4x4 MFWD 4WD chassis, ensuring better traction and performance in varying terrain. At its heart lies the Zetor Z5701, a 4-cylinder diesel engine that produces 58 horsepower and is liquid-cooled, ensuring efficient thermal regulation. The engine’s rated RPM is 2200, with a displacement of 190.3 cubic inches. This tractor boasts a partial power shift transmission with 20 forward and 4 reverse gears, facilitating a wide range of operations and speeds. Standard agricultural tires come in sizes 9.5-24 for the front and 12.4-36 for the rear, providing a solid base for both fieldwork and general-purpose tasks. The tractor's operating weight is listed at 6,530 lbs, indicating its substantial build and capabilities for various agricultural demands. Details such as the tractor's overall dimensions, PTO speed, and hydraulic system type remain unspecified, but its robust design and transmission setup suggest that the Zetor 5745 is well-equipped for demanding farm work.
Show more...

Key Specifications

Category: Utility

Power Output: 58

Transmission: Partial Power Shift

Drive Type: 4WD

Operating Weight: 6,530

Fuel Type: Diesel

Zetor 5745 vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Poor
Greater than 3% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
Z5701
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
190.3
Bore (in)
3.74
Stroke (in)
4.331
Rated RPM
2200
Power Output (hp)
58

Transmission

Type
Partial Power Shift
Forward Gears
20
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
6,530

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
