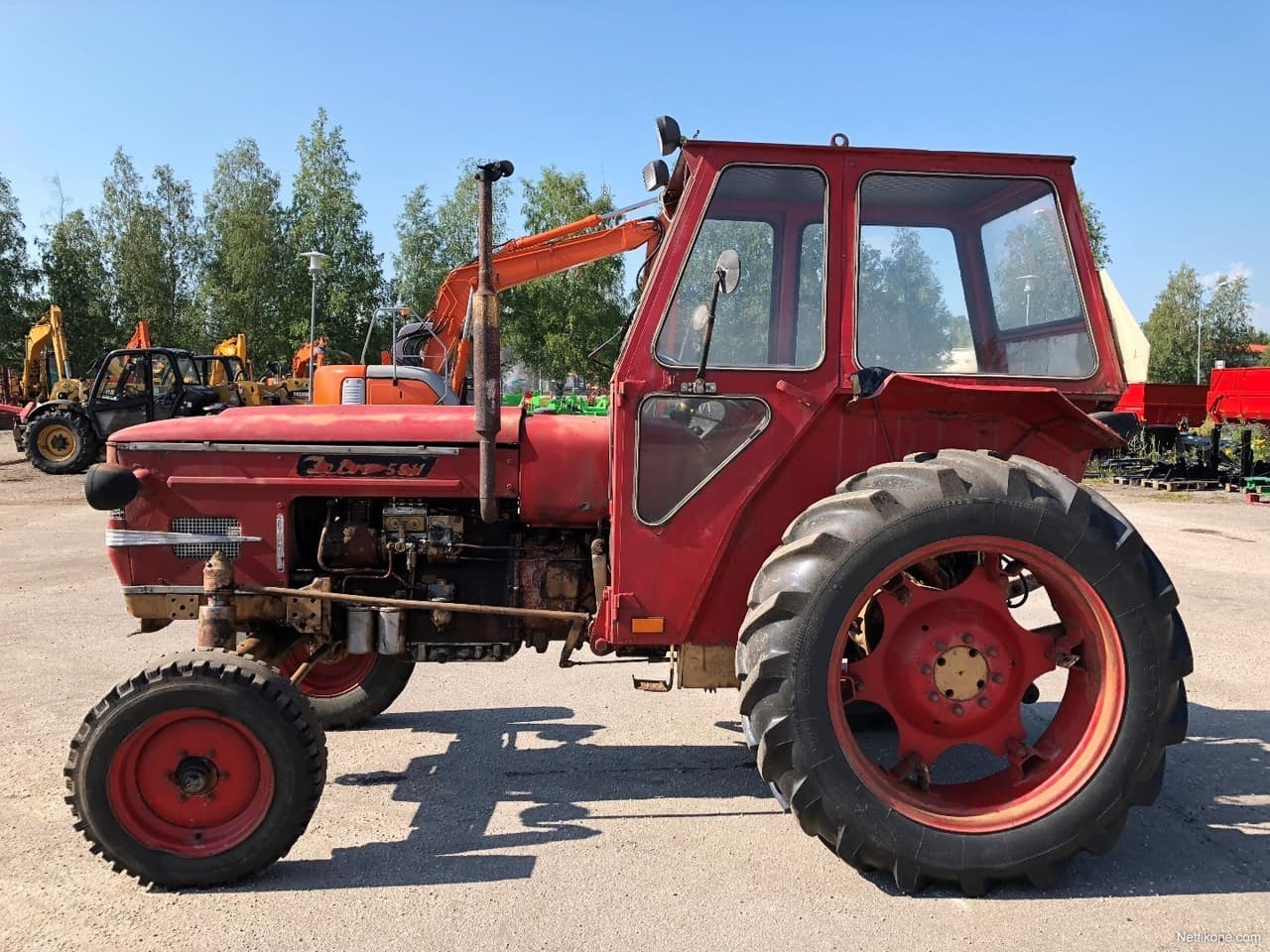

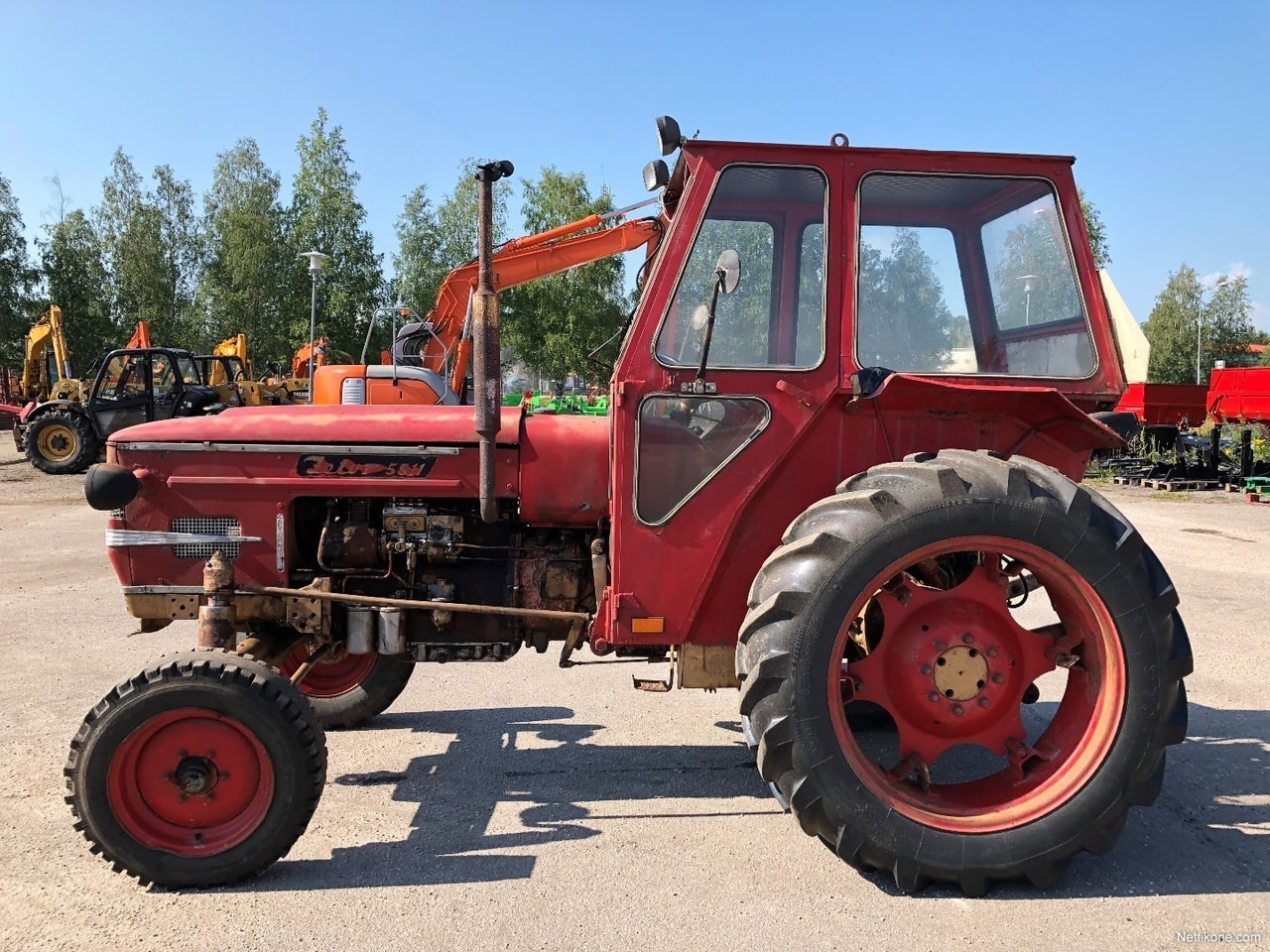

Zetor 5516

Last Updated: June 2024

Overview

The Zetor 5516 is a tractor designed with a focus on utility and performance. At the heart of this machine is a reliable and efficient Zetor diesel engine which generates a power output of 60 horsepower or 44.7 kW and is liquid-cooled for optimal thermal management. The four-cylinder engine offers a displacement of 190.3 cubic inches and operates at a rated RPM of 2200. A key characteristic of this model is its track system instead of traditional rear wheels, which enhances traction and stability on various terrains. The chassis configuration is tracked, and the machine has a substantial operating weight of 5379 pounds, emphasizing its capability for heavier operations. Transmission specifics include 10 forward and 2 reverse gears, helping the operator to effectively harness the engine's horsepower across different tasks. With a Category II hitch, the Zetor 5516 is ready for various attachments, augmenting its versatility for farm and fieldwork. However, detailed specifications related to dimensions, wheelbase (known to be 89 inches), and other nuanced features like the hydraulic system, PTO speeds, and braking system remain unspecified within this overview. The tractor's dependability and robust design highlight its role as a valuable asset for agricultural needs.
Show more...

Key Specifications

Power Output: 60

Operating Weight: 5379

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
190.3
Bore (in)
3.74
Stroke (in)
4.33
Rated RPM
2200
Power Output (hp)
60

Transmission

Type
-
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
5379

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Track
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Front: A (Agricultural), Rear: Tracks
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
