Zetor 5511

Last Updated: June 2024

Overview

The Zetor 5511 is a utility tractor known for its simplicity and durability. Featuring a 4-cylinder diesel engine with a displacement of 190.4 cubic inches, it delivers 56 horsepower through a 10-speed gear transmission with 10 forward and 2 reverse gears. The tractor operates on a 4x2 2WD chassis and offers manual steering. The 5511 model has a dry disc clutch, with operational parameters such as an engine rated RPM of 2200 and a torque of 132.4 lb-ft at 1470 RPM. With direct injection fuel system and a compression ratio of 17.9:1, this tractor is designed to perform a variety of tasks around the farm. The tractor weighs in at 4950 lbs and rides on agricultural tires, with sizes 6.00-18 in the front and 13-28 in the rear.

Key Specifications

Category: Utility

Power Output: 56

Transmission: gear

Drive Type: 2WD

Operating Weight: 4950

Fuel Type: diesel

Image Gallery

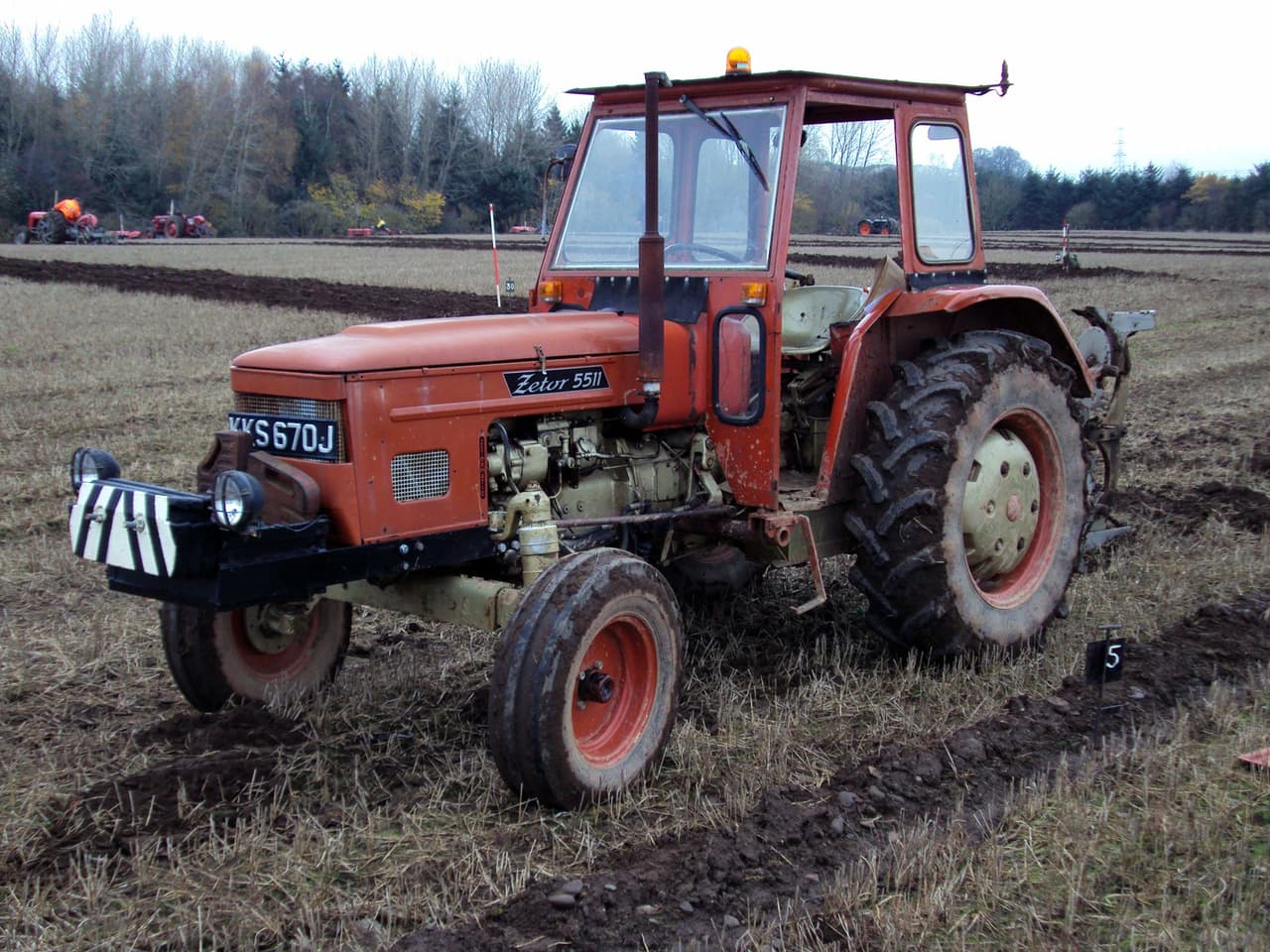

Zetor 5511 Tractor

Zetor 5511 vs. Similar Tractors

Power Output

Average

Greater than 54% of similar tractors.

Operating Weight

Average

Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer: Zetor
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: direct injection
Cylinders: 4
Displacement (ci): 190.4
Bore (in): 3.74
Stroke (in): 4.33
Rated RPM: 2200
Power Output (hp): 56

Transmission

Type: gear
Forward Gears: 10
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 4950

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: open center
