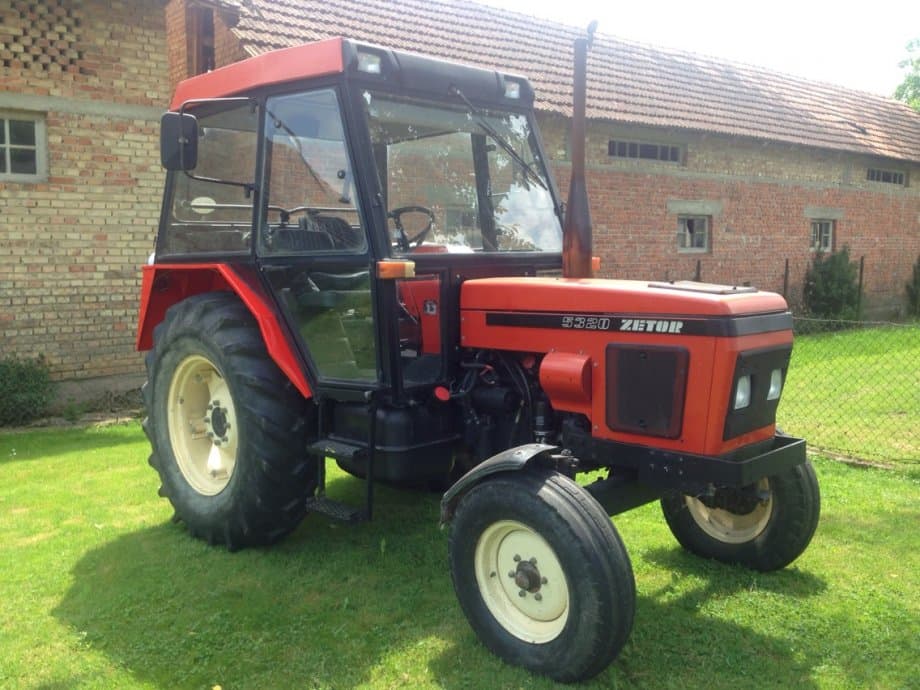

Zetor 5320

Last Updated: June 2024

Overview

The Zetor 5320 is a 2WD utility tractor that was manufactured by Zetor from 1995 to 1997. It features a powerful 3.6 L, four-cylinder diesel engine that delivers 60 HP at 2,200 RPM. The tractor comes equipped with a partially synchronized transmission that includes 10 forward and 2 reverse gears, allowing for a variety of speeds suitable for different agricultural tasks. In addition, it is designed with power steering and hydraulic dry disc brakes for enhanced control and safety. The Zetor 5320 also offers a comfortable cab as a standard feature to protect operators from the elements. Built as a utility tractor, this model serves well for a range of tasks on the farm, from plowing and cultivating to transporting materials. It's known for its reliability and simple maintenance, which can be an advantage to those looking for a straightforward, no-frills workhorse.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 6746

Fuel Type: Diesel

Zetor 5320 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
7201
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
219.4
Bore (in)
4.02
Stroke (in)
4.33
Rated RPM
2200
Power Output (hp)
60

Transmission

Type
Partially synchronized
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
149.6
Width (in)
72.4
Height (in)
104.3
Operating Weight (lb)
6746

Power Take-Off (PTO)

PTO Type
Rear
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1997
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
Hydraulic dry disc
Hydraulic System Type
-
