Zetor 4911

Last Updated: June 2024

Overview

The Zetor 4911 is a 2WD utility tractor, part of the UR1 9 series, manufactured by Zetor between 1977 and 1980. It features a 2.7 L, three-cylinder diesel engine, with a displacement of 164.5 cubic inches, generating 45 horsepower at 2200 rpm and torque of 31.9 lb-ft at 1450 rpm. This tractor is designed with a 4x2 2WD chassis, a manual transmission offering 10 forward and 2 reverse gears. The tractor comes with an open operator station, with an option for a cab. The Zetor 4911 has a wheelbase of 78 inches and is fitted with standard agricultural tires, 7.50-16 in the front and 12.4-36 in the rear. The lift capacity at the hitch ends is rated at 2975 pounds, and it features PTO speeds of 540 and 1000 rpm.

Key Specifications

Category: Utility

Power Output: 45

Transmission: Manual

Drive Type: 2WD

Fuel Type: Diesel

Lift Capacity: 2975

Image Gallery

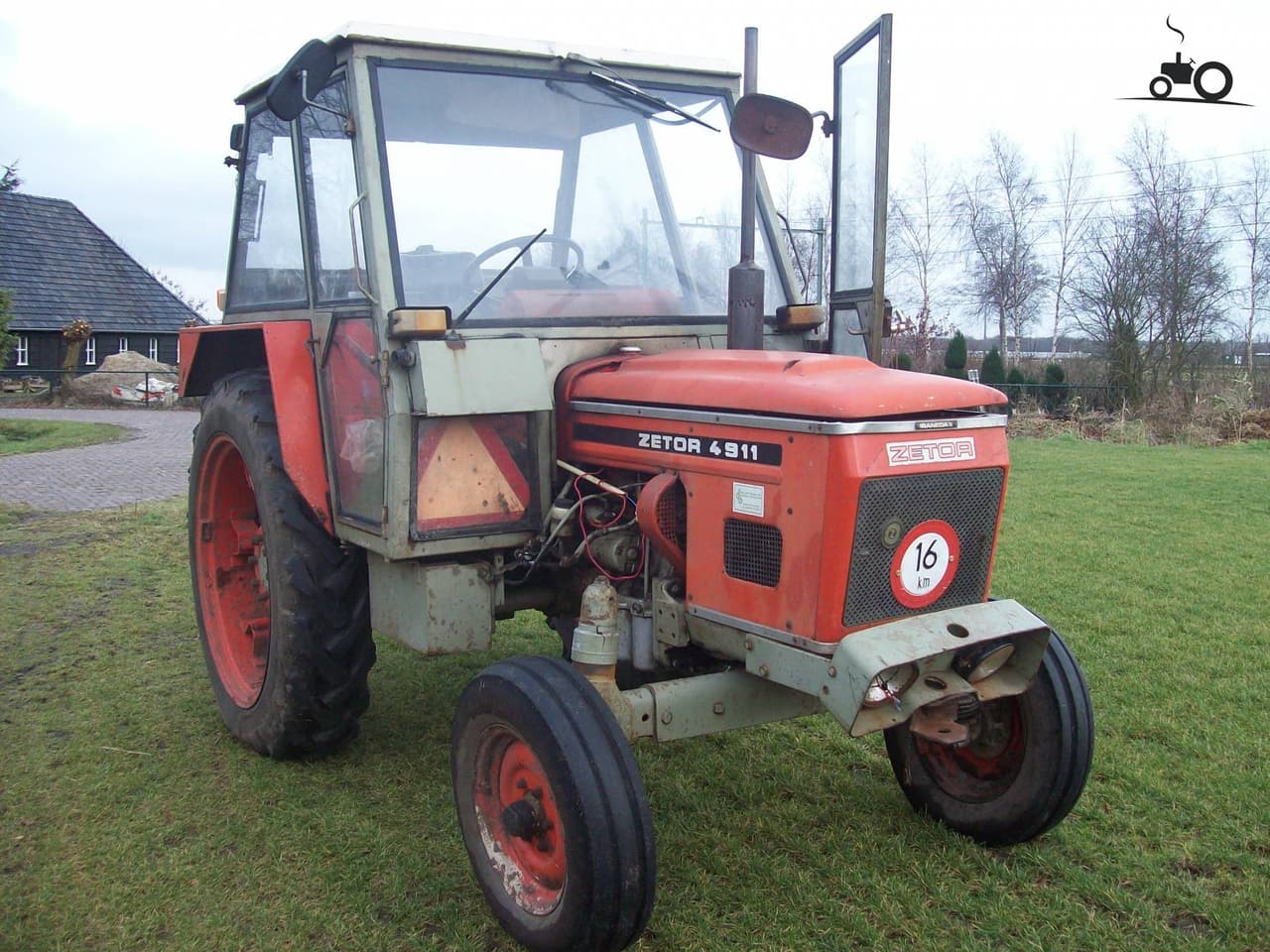

Zetor 4911 Tractor

Zetor 4911 vs. Similar Tractors

Power Output

Average

Greater than 43% of similar tractors.

Hitch Capacity

Average

Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer: Zetor
Model: Z4901
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 164.5
Bore (in): 4.02
Stroke (in): 4.33
Rated RPM: 2200
Power Output (hp): 45

Transmission

Type: Manual
Forward Gears: 10
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 132.7
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1980
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 2975
Operator Station Type: Open, Cab available
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
