Zetor 4712

Last Updated: June 2024

Overview

The Zetor 4712 is a utility tractor that was built by Zetor. It features a 45 horsepower Zetor Z4701 diesel engine and a Zetormatic transmission with 10 forward and 2 reverse gears. Designed with a 4x2 two-wheel-drive chassis, the tractor has a wheelbase of 78.27 inches. The tire setup for the tractor includes 6.00-16 front tires and 12.4-32 rear tires, indicative of its agricultural use capabilities. The engine's power output of 45 hp is generated through three cylinders with a displacement of 158.2 cubic inches and operates at a compression ratio of 17.9:1 at a rated 2200 RPM. The tractor weighs in at 4,519 lbs, suggesting a solid build suitable for various agricultural applications. The rear tread can be adjusted from 50.4 to 70.9 inches which allows for customization based on the task or the terrain.

Key Specifications

Category: Utility

Power Output: 45

Transmission: Zetormatic

Drive Type: 2WD

Operating Weight: 4519

Fuel Type: Diesel

Image Gallery

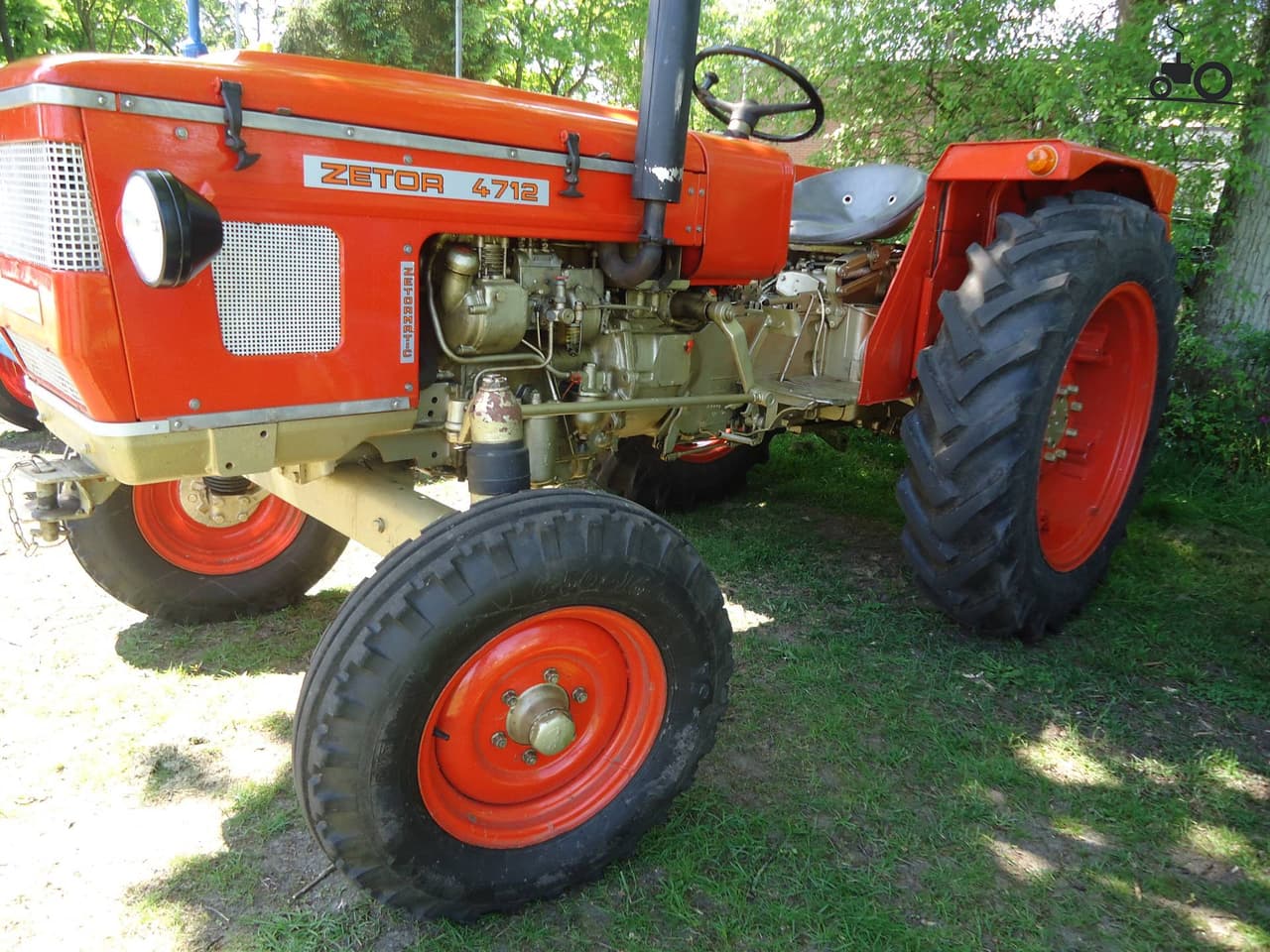

Zetor 4712 Tractor

Zetor 4712 vs. Similar Tractors

Power Output

Average

Greater than 43% of similar tractors.

Operating Weight

Average

Greater than 41% of similar tractors.

Technical Specifications

Engine

Manufacturer: Zetor
Model: Z4701
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 158.2
Bore (in): 3.937
Stroke (in): 4.331
Rated RPM: 2200
Power Output (hp): 45

Transmission

Type: Zetormatic
Forward Gears: 10
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 4519

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 6
Rear Tire Diameter (in): 32
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
