Zetor 3545

Last Updated: June 2024

Overview

The Zetor 3545 is a 4x2 2WD tractor, indicative of a configuration commonly found in general-purpose farming and utility roles. It is powered by a Z3001 diesel engine, with a displacement of 142.7 cubic inches, creating a power output of 39 horsepower at a rated RPM of 2000. The liquid-cooled, three-cylinder engine is paired with a 10-speed gear transmission, which includes 10 forward and 2 reverse gears. The tractor's operational weight is 3351 pounds, suggesting a mid-range capability for various agricultural tasks. The tractor rolls on Ag type tires, with front tire dimensions of 9.5-24 inches and rear tire dimensions of 12.4-28 inches. With a dry disc clutch and a Category II rear hitch, it was designed to handle a range of implements and attachments.

Key Specifications

Power Output: 39

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3351

Fuel Type: Diesel

Image Gallery

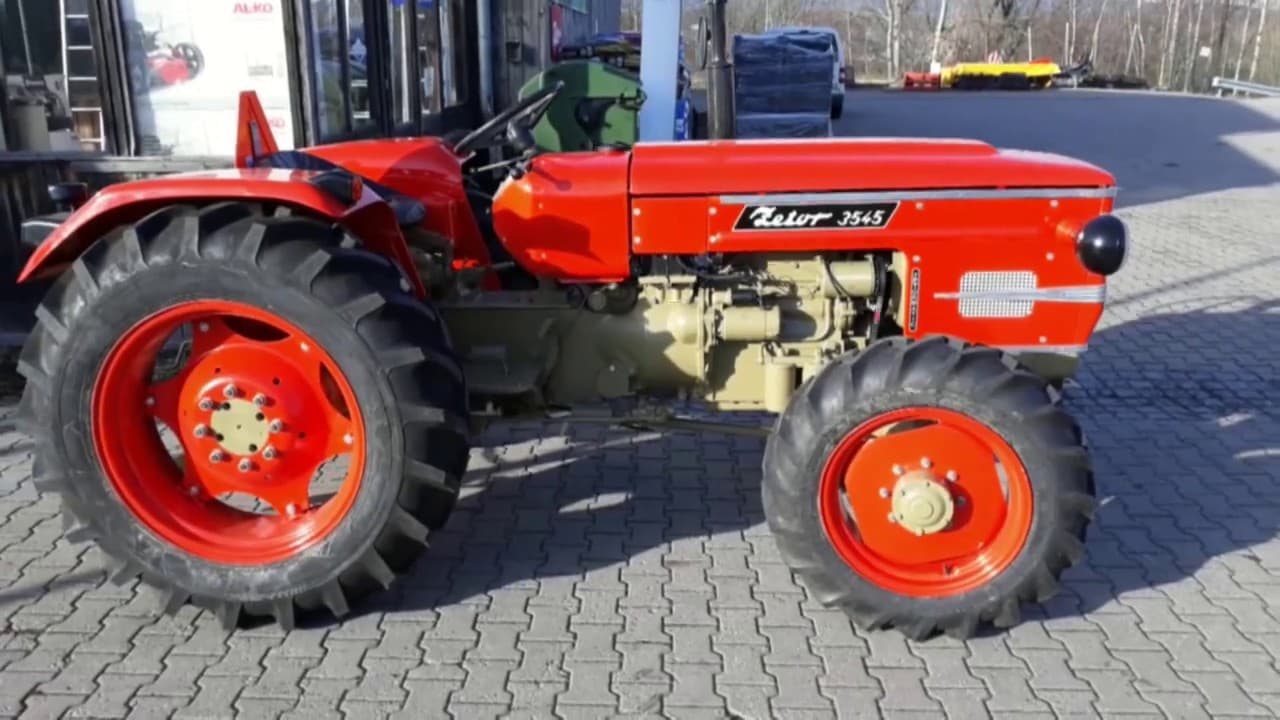

Zetor 3545 Tractor

Technical Specifications

Engine

Manufacturer: Zetor
Model: Z3001
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (assumed from lack of data on forced induction)
Cylinders: 3
Displacement (ci): 142.7
Bore (in): 3.74
Stroke (in): 4.331
Rated RPM: 2000
Power Output (hp): 39

Transmission

Type: Gear
Forward Gears: 10
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 3351

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 24
Front Tire Width (in): 9.5
Rear Tire Diameter (in): 28
Rear Tire Width (in): 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
