Zetor 3340

Last Updated: June 2024

Overview

The Zetor 3340 is a four-wheel-drive utility tractor from the Range 1 series, manufactured by Zetor in Brno, Czech Republic. It features a Zetor Z5201 three-cylinder, natural aspirated diesel engine with a liquid-cooled inline configuration. The tractor comes with power steering and hydraulic dry disc brakes, and it has a fuel tank capacity of 45.4 liters. Available with either a synchromesh or a mech shuttle transmission, the Zetor 3340 offers versatility in handling a variety of tasks. It is equipped with a standard cab for operator comfort and was in production from 1993 to 1997. With a hitch lift capacity of 3,860 lbs and multiple PTO speeds, this tractor can adapt to numerous pieces of equipment and attachments.

Key Specifications

Category: Utility

Power Output: 46

Transmission: Synchromesh / Mech shuttle

Drive Type: 4WD

Operating Weight: 7,080

Fuel Type: Diesel

Image Gallery

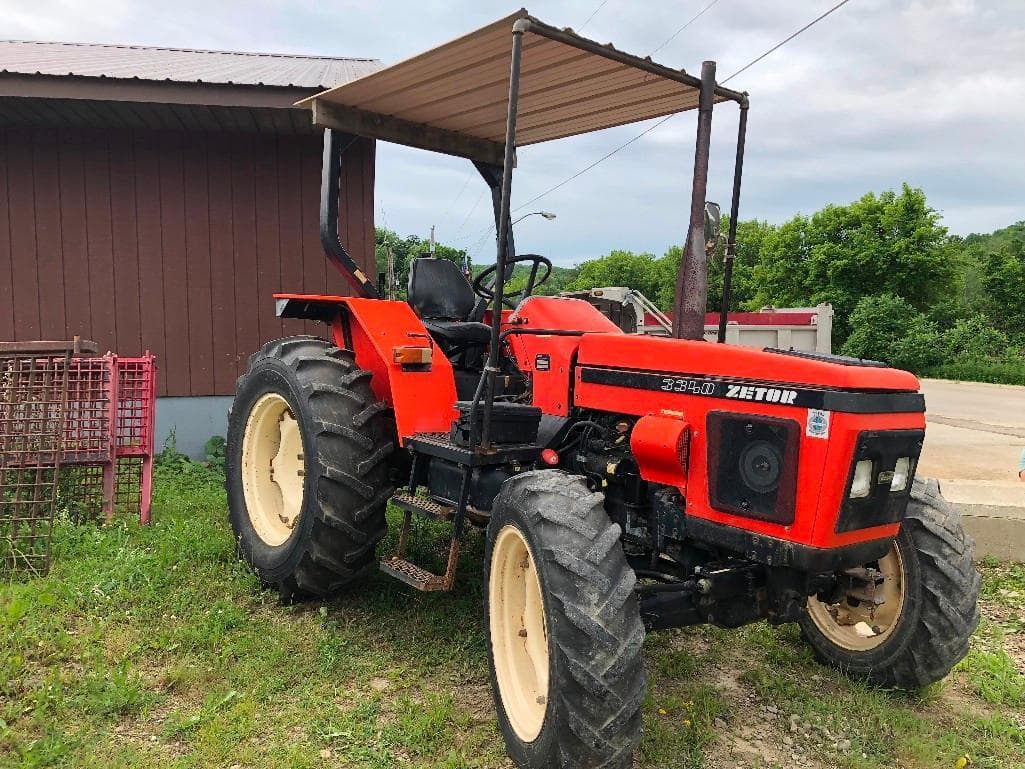

Zetor 3340 Tractor

Zetor 3340 vs. Similar Tractors

Power Output

Average

Greater than 44% of similar tractors.

Hitch Capacity

Poor

Greater than 10% of similar tractors.

Operating Weight

Poor

Greater than 3% of similar tractors.

Technical Specifications

Engine

Manufacturer: Zetor
Model: Z5201
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 164.6
Bore (in): 4.02
Stroke (in): 4.33
Rated RPM: 2200
Power Output (hp): 46

Transmission

Type: Synchromesh / Mech shuttle
Forward Gears: 10
Reverse Gears: 2 (synchromesh) / 10 (mech shuttle)
Total Gears: -

Dimensions

Length (in): 144.1
Width (in): 72.4
Height (in): 102 (cab)
Operating Weight (lb): 7,080

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 10 (without heater) / 11 (with heater)
Front Tire Diameter (in): 24
Front Tire Width (in): 9.5 / 11.2 (Ag)
Rear Tire Diameter (in): 28 / 36
Rear Tire Width (in): 14.9 / 12.4
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1997
Hitch Type: Three-Point Hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 3,860 lbs
Operator Station Type: Cab
Starter Type: Electric
Brake Type: Hydraulic dry disc
Hydraulic System Type: Open center
