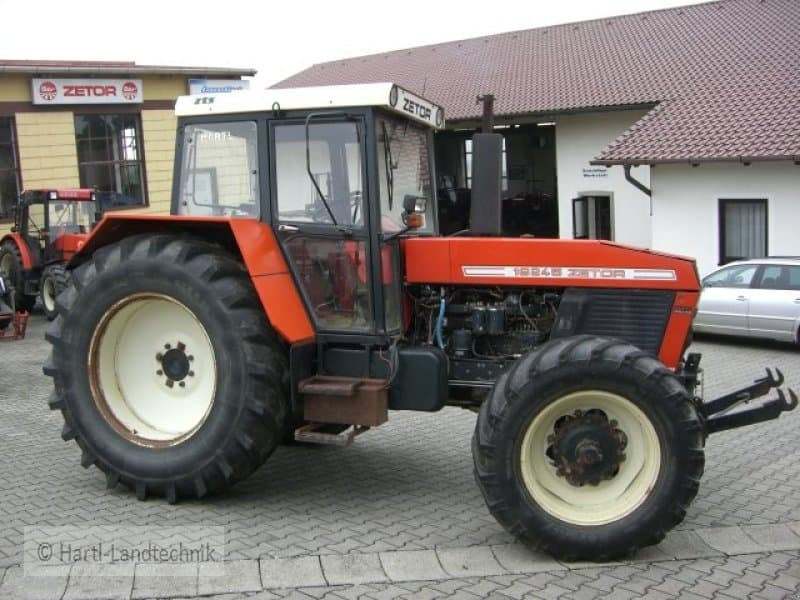

Zetor 16245

Last Updated: June 2024

Overview

The Zetor 16245 is a row-crop tractor known for its robust design and four-wheel drive (4x4 MFWD 4WD) chassis, making it suitable for various agricultural tasks. Equipped with power steering, it offers a comfortable operational experience. This tractor features a 12-speed synchro mesh transmission that provides 12 forward and 6 reverse gears, enabling the operator to select the appropriate speed for a given task. The engine is a turbocharged, liquid-cooled, 6-cylinder diesel unit manufactured by Zetor. It has a displacement of 417.5 cubic inches and a coolant capacity of 24 quarts. The wheelbase is measured at 106.1 inches, supporting stability during operation. It weighs 11,500 pounds. Detailed information such as RPM, power output, PTO specifics, and tire dimensions are not specified in the data provided. The hydraulic system is described as an open center, although additional details about the system's capabilities are not clarified. The tractor is also fitted with a Rear Type III/II hitch for implement attachment, though the hitch lift capacity is not detailed.
Show more...

Key Specifications

Category: Row Crop

Transmission: Synchro Mesh

Drive Type: 4WD

Operating Weight: 11500

Fuel Type: Diesel

Zetor 16245 vs. Similar Tractors

Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
417.5
Bore (in)
4.33
Stroke (in)
4.72
Rated RPM
-
Power Output (hp)
-

Transmission

Type
Synchro Mesh
Forward Gears
12
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
11500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
24
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type III/II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open Center
