Zetor 10245

Last Updated: June 2024

Overview

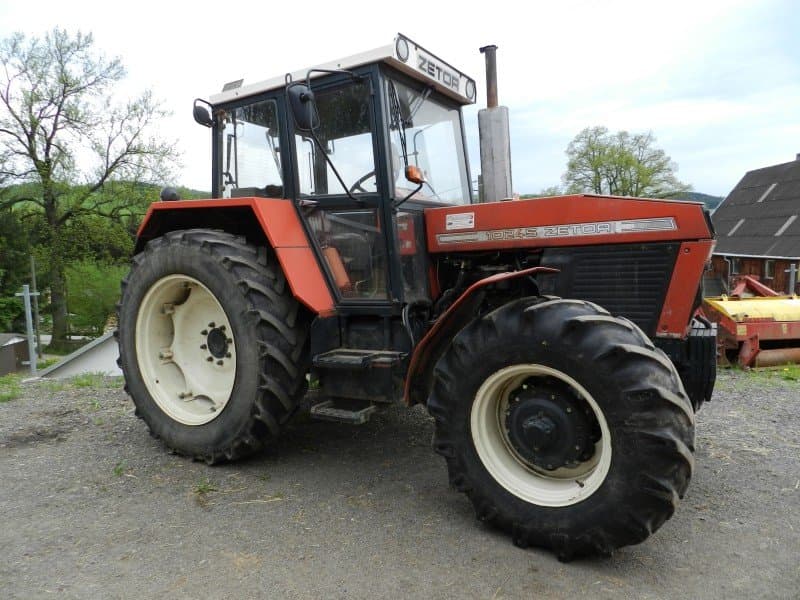

The Zetor 10245 is a robust row-crop tractor, designed to meet the rigorous demands of daily farm work. It features a 4x4 MFWD 4WD chassis which, coupled with its power steering and a 16-speed synchromesh transmission, emphasizes both durability and maneuverability across diverse terrains. The 10245 is powered by Zetor's own turbocharged diesel engine, with a liquid cooling system, an engine displacement of 278.4 cubic inches, and a rated RPM of 2200. The engine is also known for its direct injection fuel system, contributing to its efficiency and power output. With operating weights clocking in at 9500 lbs and incorporating a Rear Type II hitch compatible with Category 3 attachments, this tractor offers a blend of performance and practicality for all sorts of crop production tasks. The open center hydraulic system provides a consistent flow for implements, while the dimensions of the vehicle ensure it slots into most farming operations seamlessly. This Zetor tractor is characterized by the pleasant balance between its substantial size, its effective ground clearance of 15 inches, and adaptability, making it an asset on the farm.
Show more...

Key Specifications

Category: Row Crop

Transmission: Synchromesh

Drive Type: 4WD

Operating Weight: 9500

Fuel Type: Diesel

Zetor 10245 vs. Similar Tractors

Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
278.4
Bore (in)
4.33
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Synchromesh
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
156.7
Width (in)
76.8
Height (in)
113.4 (Note: Cabin height is different from exhaust height)
Operating Weight (lb)
9500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
19
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type II
Hitch Category
Category 3 (assumed based on Rear Type II)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab (assumed based on the presence of cabin height specification)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
