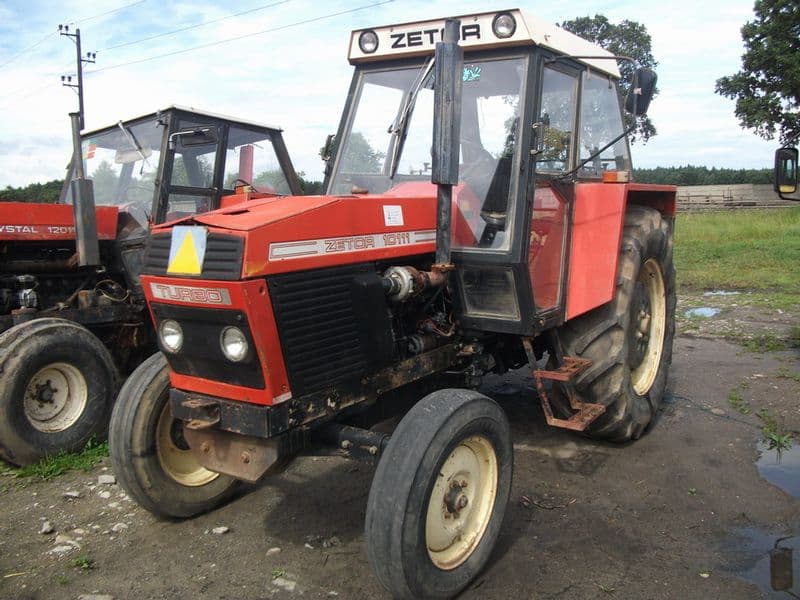

Zetor 10211

Last Updated: June 2024

Overview

The Zetor 10211 is a row-crop tractor that boasts a 4x2 2WD chassis, offering farmers a combination of maneuverability and practicality for a variety of agricultural tasks. The tractor features power steering to enhance control and ease of use, even when handling tough fieldwork. Its transmission system is a 16-speed synchromesh, allowing for ample speed selection for precision and efficiency. The Zetor engine under the hood is a 4-cylinder turbocharged diesel engine with a displacement of 278.4 cubic inches, coupled with a direct injection fuel system. It operates at a rated RPM of 2200, although the horsepower is unspecified. Cooling is managed by a liquid-cooled system with an 18-liter coolant capacity. The tractor's dimensions, length of 398 cm (156.7 inches) and width of 195 cm (76.8 inches), make it a sizable presence in the field. The operating weight stands at 4445 kg (9800 lbs), adding to its stability during operation. It also has a hydraulic open center system, but specific details regarding the power take-off (PTO) speeds and brake types are not provided.
Show more...

Key Specifications

Category: Row Crop

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 9800

Fuel Type: Diesel

Zetor 10211 vs. Similar Tractors

Operating Weight
Average
Greater than 34% of similar tractors.

Technical Specifications

Engine

Manufacturer
Zetor
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
278.4
Bore (in)
4.33
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Synchromesh
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
156.7
Width (in)
76.8
Height (in)
-
Operating Weight (lb)
9800

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
19
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag front: 7.50-20, Ag rear: 16.9-30
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
