Zetor 10145

Last Updated: July 2024

Overview

The Zetor 10145 is a row-crop tractor built with a focus on power and durability. It boasts a 4x4 MFWD 4WD system that enhances its capability in a variety of field conditions. The power steering feature enables easier maneuverability. This model comes with a two-speed power shift transmission that includes 16 forward and 8 reverse gears. The Zetor 8002.1 engine is a turbocharged diesel, 4-cylinder, liquid-cooled design with a displacement of 278.4 cubic inches, consistent with a robust and performant power unit for demanding tasks. Independent test results from the University of Nebraska Tractor Test Laboratory indicate a maximum power output of 95.63 HP (71.32 kW) at 2200 rpm, with a maximum torque of 260 lb.-ft. (352 Nm) at 1500 rpm and a torque rise of 20.1%. The hydraulic system can exert a maximum force of 5500 lbs (24.5 kN) at the hitch points, with a pump delivery rate of 11.8 GPM (44.7 l/min) and hydraulic power of 37.0 HP (27.6 kW) at 2850 psi (196 bar). The fuel efficiency at standard PTO speed (1000 rpm) is 16.10 Hp.hr/gal (3.26 kW.h/l), with a fuel consumption of 5.58 Gal/hr (21.12 l/h) at 1979 rpm.

Key Specifications

Category: Row Crop

Transmission: Two-speed power shift

Drive Type: 4WD

Operating Weight: 9524

Fuel Type: Turbocharged diesel

Image Gallery

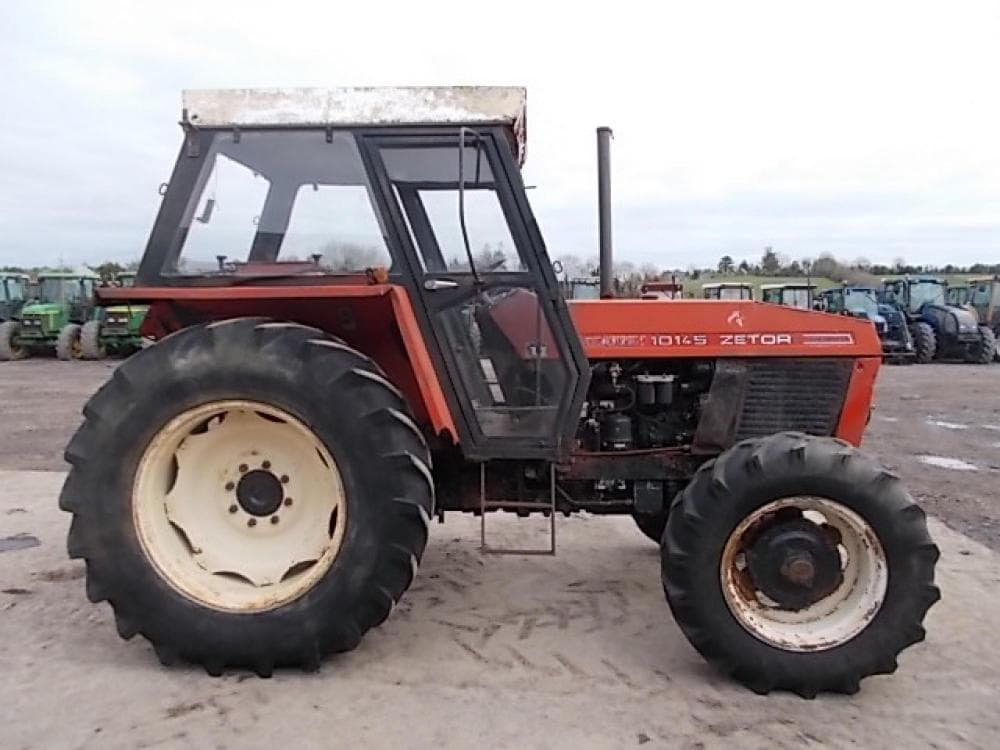

Zetor 10145 Tractor

Zetor 10145 vs. Similar Tractors

Operating Weight

Average

Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer: Zetor
Model: 8002.1
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Turbocharged diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 278.4
Bore (in): 4.331
Stroke (in): 4.724
Rated RPM: 2200
Power Output (hp): -

Transmission

Type: Two-speed power shift
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 156.7
Width (in): 76.8
Height (in): (cab) 104.1 | (exhaust) 103.4
Operating Weight (lb): 9524

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 19
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center

Test Results

Nebraska Tractor Test Laboratory - Test Date: 1984

Maximum Power and Fuel Consumption

Maximum Power: 95.63 HP (71.32 kW) at 2200 rpm
Fuel Consumption at Maximum Power: 5.84 Gal/hr (22.11 l/h) with a fuel efficiency of 0.405 lb/hp.hr (0.246 kg/kW.h)

Drawbar Performance

Power at Rated Engine Speed (5th Gear): 82.00 HP (61.15 kW) with a drawbar pull of 7054 lbs (31.36 kN) and a speed of 4.32 mph (6.95 km/h)
Fuel Consumption at Rated Speed: 0.431 lb/hp.hr (0.262 kg/kW.h) with a fuel efficiency of 15.02 Hp.hr/gal (2.96 kW.h/l)

Torque and Engine Performance

Maximum Torque: 260 lb.-ft. (352 Nm) at 1500 rpm
Torque Rise: 20.1% with a power increase at 2200 rpm of 13.5%

Hydraulic Performance

Maximum Force Exerted: 5500 lbs (24.5 kN) at hitch points
Pump Delivery Rate: 11.8 GPM (44.7 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 37.0 HP (27.6 kW) at delivery pressure of 2850 psi (196 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.10 Hp.hr/gal (3.26 kW.h/l)
Fuel Consumption: 5.58 Gal/hr (21.12 l/h) at 1979 rpm

Nebraska Tractor Test Lab. (1984). Nebraska Summary S018: Zetor 10145. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2302
