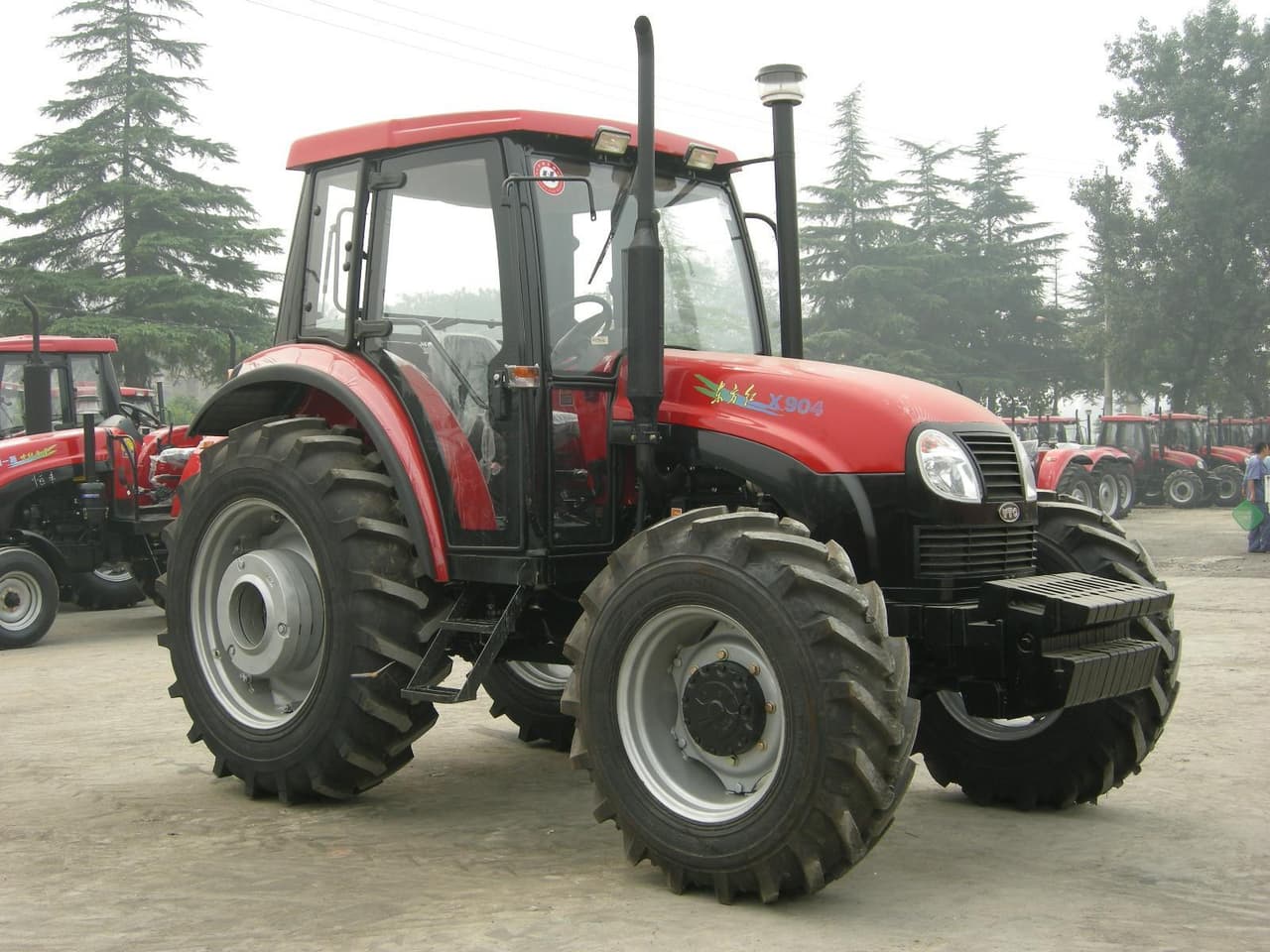

YTO X904

Last Updated: June 2024

Overview

The YTO X904 is a robust utility tractor featuring a 4x4 MFWD 4WD chassis, which enhances traction and stability across various types of terrain. The heart of the X904 is its YTO branded, four-cylinder, liquid-cooled diesel engine that outputs 89.2 horsepower, with an engine rated RPM of 2300. This tractor’s transmission offers 12 forward and 4 reverse gears, indicating versatility in handling different tasks. The X904’s wheelbase measures 91.1 inches, contributing to steadiness during operation. In terms of dimensions, the tractor stretches to a length of 167.7 inches, a width of 83.5 inches, and a height of 117.7 inches, with an operating weight of 10,050 lbs, suggesting a solid and durable construction. This tractor is fitted with agricultural tires, with a front tire width of 13.6 inches and a rear tire width of 16.9 inches. While many other details are not specified, the given information suggests that the X904 is designed to perform well in a range of agricultural settings.
Show more...

Key Specifications

Power Output: 89.2

Drive Type: 4WD

Operating Weight: 10050

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
YTO
Model
LR4105ZT55
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
89.2

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
167.7
Width (in)
83.5
Height (in)
117.7
Operating Weight (lb)
10050

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
13.6
Rear Tire Diameter (in)
-
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
