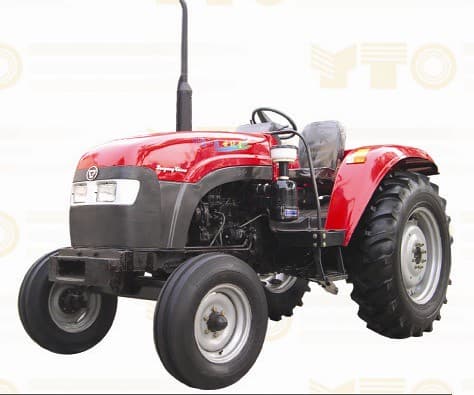

YTO X700

Last Updated: June 2024

Overview

The YTO X700 is a tractor designed with utility in mind. It features a 4-cylinder, liquid-cooled diesel engine rated at 69.1 horsepower, and a power take-off (PTO) rated at 2400 RPM. The tractor offers a simple 4x2 2WD chassis configuration with a basic 12-forward and 4-reverse speed transmission. With a substantial operating weight of 7,551 lbs and a stable wheelbase of 92.2 inches, this tractor is suited to various farming tasks. While details like the type of operator station, starting system, hitch type, and hydraulic system remain unspecified, the X700's core specs provide a foundation for a hardworking agricultural machine.
Show more...

Key Specifications

Power Output: 69.1

Drive Type: 2WD

Operating Weight: 7551

Fuel Type: Diesel

Image Gallery

YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor YTO X700 Tractor

Technical Specifications

Engine

Manufacturer
YTO
Model
LR4105T76A
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2400
Power Output (hp)
69.1

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
163.8
Width (in)
73.9
Height (in)
111.2
Operating Weight (lb)
7551

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
