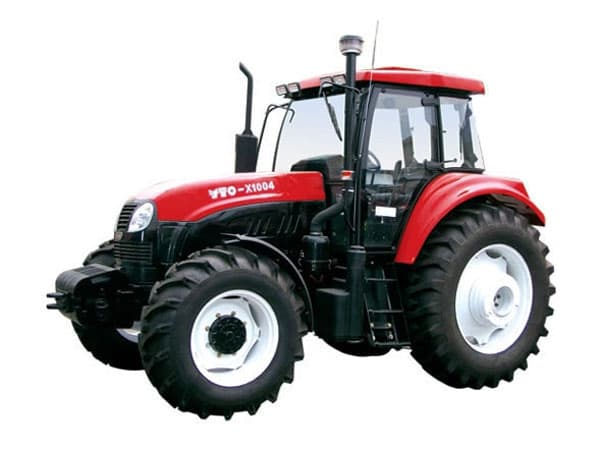

YTO X1004

Last Updated: June 2024

Overview

The YTO X1004 is a utility tractor known for its reliable power and versatility. Equipped with a 4x4 MFWD 4WD chassis, this tractor offers improved traction and performance in varying agricultural conditions. Its durable construction and robust engine, the YTO LR6105T10X, ensure that it can handle various tasks with ease. The engine provides 98.6 horsepower and a rated RPM of 2400, suitable for a wide range of power-intensive applications. With a liquid cooling system, the engine remains efficient even during extended use. This tractor's 12-speed manual transmission, including 12 forward and 4 reverse gears, offers flexibility in speed and maneuverability. The tractor has a notable ground clearance of 18.5 inches and comes with agricultural tires, front size 14.9-24 and rear size 16.9-38, supporting various farm operations. Its dimensions indicate a considerable presence, with a length of 187.8 inches, a width of 91.7 inches, and a height of 116.5 inches, alongside an operating weight of 11,640 lbs, which contributes to its stability and capability to perform in demanding assignments.
Show more...

Key Specifications

Power Output: 98.6

Transmission: Manual

Drive Type: 4WD

Operating Weight: 11,640

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
YTO
Model
LR6105T10X
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated (assumed, as no turbo/supercharger mentioned)
Cylinders
6
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2400
Power Output (hp)
98.6

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
187.8
Width (in)
91.7
Height (in)
116.5
Operating Weight (lb)
11,640

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
