YTO 604

Last Updated: June 2024

Overview

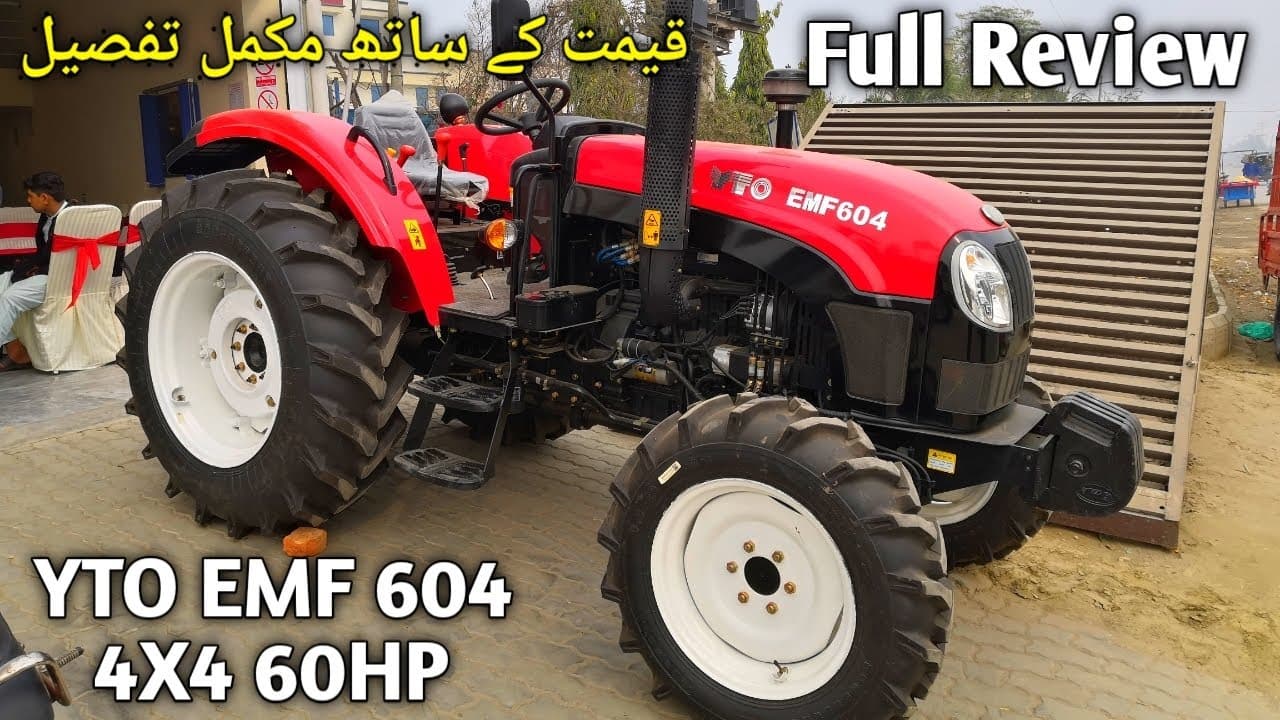

The YTO 604 is a four-wheel-drive tractor, denoted by its 4x4 MFWD 4WD chassis, suggesting it is designed for general farm work and increased traction on various terrains. Powered by a 59 horsepower (44.0 kW) YTO LR4105T19, four-cylinder, liquid-cooled, diesel engine, it provides adequate power for a range of agricultural tasks. This engine is capable of reaching up to 2300 RPM. The tractor's notable dimensions include a wheelbase of 83.7 inches (212 cm), a length of 153.5 inches (389 cm), a width of 71.5 inches (181 cm), and a height of 68.9 inches (175 cm). It has an operating weight of 5,269 lbs (2390 kg) and offers substantial ground clearance of 13.8 inches (35 cm), enabling work in fields with varying soil conditions. It rides on agricultural front tires sized 7.50-20 and rear tires sized 13.6-28. Due to data limitations, details regarding the tractor's transmission, hydraulics, PTO, and hitch capabilities are not specified.
Show more...

Key Specifications

Power Output: 59

Drive Type: 4WD

Operating Weight: 5269

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
YTO
Model
LR4105T19
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2300
Power Output (hp)
59

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
153.5
Width (in)
71.5
Height (in)
68.9
Operating Weight (lb)
5269

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
