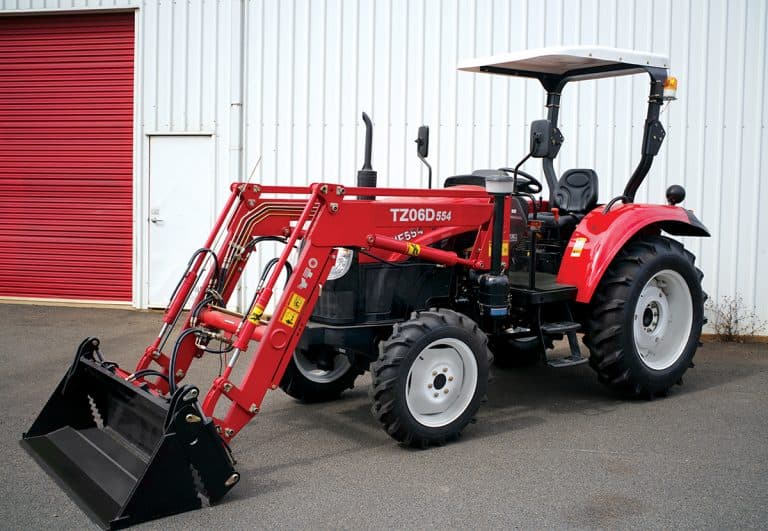

YTO 404

Last Updated: June 2024

Overview

The YTO 404 is a utility tractor with a 4x4 MFWD 4WD chassis, implying it has a four-wheel drive system that offers improved traction compared to two-wheel drive models. This type of drive is particularly useful in tough terrain or slippery conditions. It is powered by a 39.4 horsepower YTO YTR3105 diesel engine, which is a 3-cylinder, liquid-cooled design that operates at a rated 2200 RPM. In terms of its physical dimensions, the tractor has a length of 139.7 inches, a width of 66 inches, and a height of 61.2 inches. It has a ground clearance of 1.6 inches and an operating weight of 4,233 pounds, making it robust enough for several utility purposes while maintaining a moderate size. The tractor uses agricultural tires with a front specification of 7.5-16 and a rear specification of 11.2-28, helping it to navigate various types of terrain on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 39.4

Drive Type: 4WD

Operating Weight: 4233

Fuel Type: Diesel

YTO 404 vs. Similar Tractors

Power Output
Average
Greater than 35% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
YTO
Model
YTR3105
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
39.4

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
139.7
Width (in)
66
Height (in)
61.2
Operating Weight (lb)
4233

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
