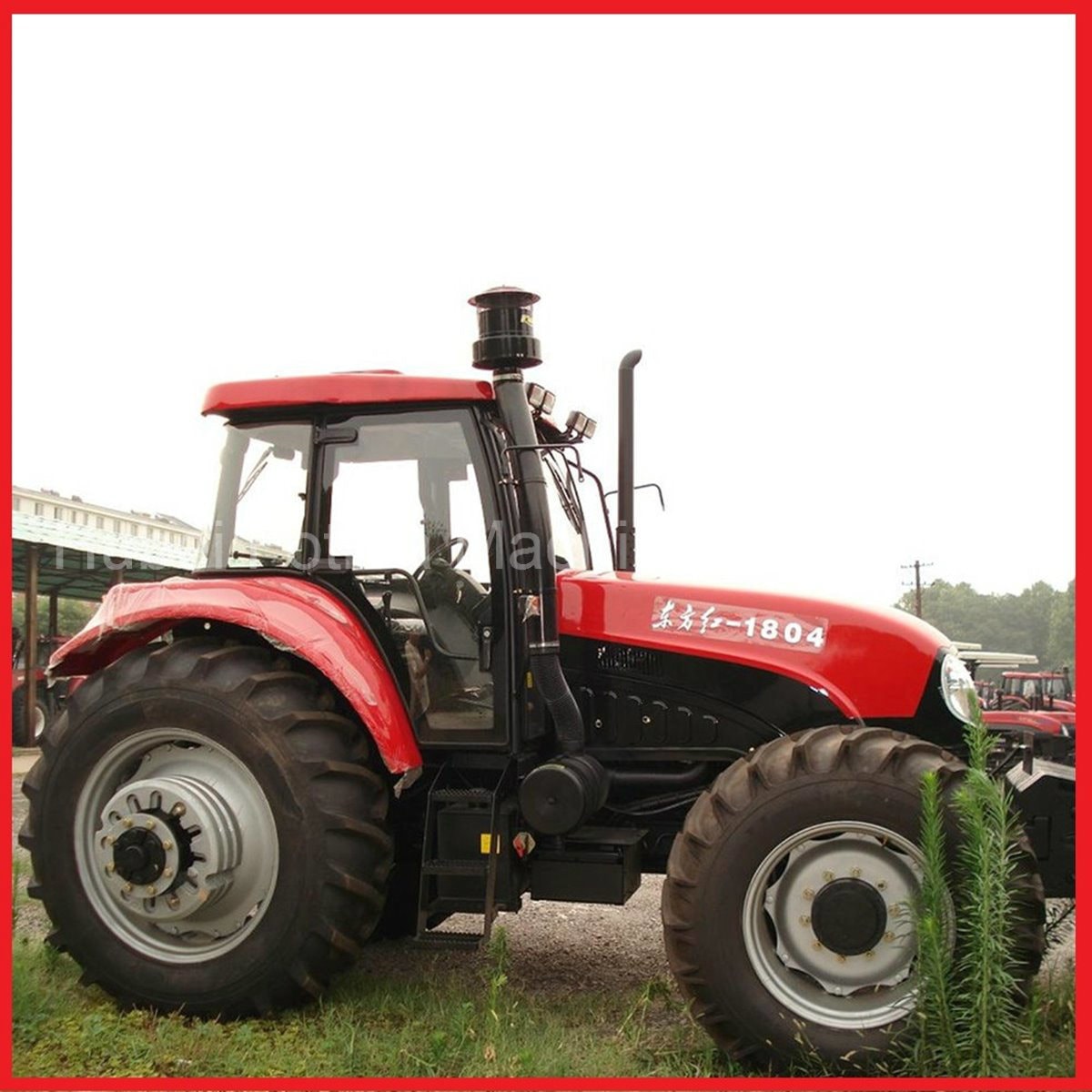

YTO 1804

Last Updated: June 2024

Overview

The YTO 1804 is a 4WD tractor, which bears the model number 1804 as designated by its manufacturer, YTO. It's a robust agricultural machine that operates using a six-cylinder, YTO LR6105ZWT13 engine rated at 177.4 horsepower with an intercooled turbo diesel feature and liquid-cooling system. Its power is harnessed through a transmission system that offers 12 forward and 4 reverse gears, ensuring comprehensive coverage for a variety of tasks. The engine's rated RPM is 2200, ensuring efficient operation through different demands of the working environment. Boasting a wheelbase of 112.1 inches, it sits firmly on tires with front measurement 16.9-28 and rear measurement 20.8-38. The tractor's overall length measures approximately 24.7 feet, with a width of 106.1 inches and a height of 116.9 inches. The operating weight of the tractor is 14,330 lbs, which contributes to its stability and traction. This model's sturdy construction and significant power output make it suitable for a range of heavy-duty agricultural operations.
Show more...

Key Specifications

Power Output: 177.4

Drive Type: 4WD

Operating Weight: 14330

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
YTO
Model
LR6105ZWT13
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled turbo
Cylinders
6
Displacement (ci)
-
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
177.4

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
295.7
Width (in)
106.1
Height (in)
116.9
Operating Weight (lb)
14330

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
